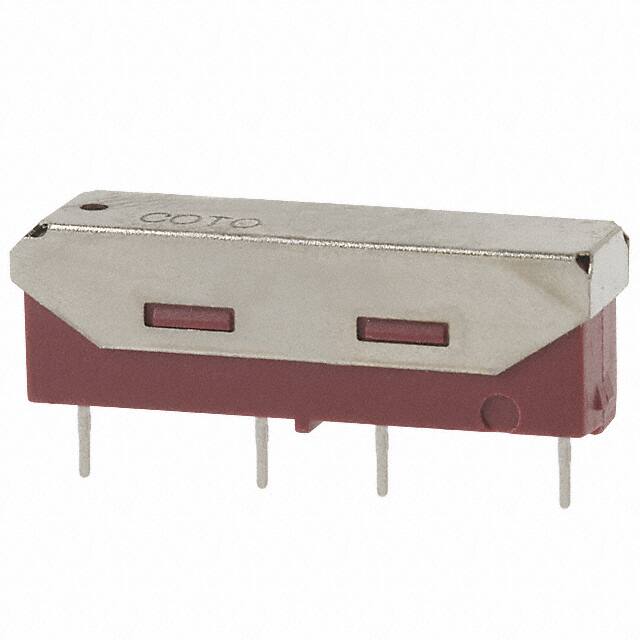

Factory Lead Time

20 Weeks

Mount

Through Hole

Mounting Type

Through Hole

Package / Case

SIP

CoilResistance

175Ohm

Coil Voltage AC

5V

Contact Materials

Ruthenium

ElectricalLife

300000000 Cycle(s)

Operating Temperature

-20°C~85°C

Packaging

Bulk

Series

9104

Published

2006

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

4

Termination

PC Pin

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

HTS Code

8536.49.00.50

Reference Standard

UL

Termination Style

PC Pin

Body Length or Diameter

24.13mm

Physical Dimension

24.13mm x 6.22mm x 8.13mm

Insulation Resistance

100000000000Ohm

Contact Current(DC)-Max

0.5A

Sealing

HERMETICAL

Contact Voltage(DC)-Max

1000V

Throw Configuration

SPST

Contact Form

SPST-NO (1 Form A)

Relay Type

Reed

Contact Current(AC)-Max

0.5A

Contact (AC) Max Rating R Load

0.5A@1000VAC

Operate Time

0.75ms

Coil Voltage

5VDC

Coil Type

Non Latching

Switching Voltage

1000VAC 1000VDC -Max

Coil Current

28.6mA

Release Time

0.5ms

Contact (DC) Max Rating R Load

0.5A@1000VDC

Must Operate Voltage

3.75VDC

Must Release Voltage

0.5VDC

Contact Voltage(AC)-Max

1000V

Contact/Output Supply Type

AC/DC

Relay Action

LATCHED

Coil Voltage (DC)

5V

Coil/Input Supply Type

DC

PCB Hole Count

4

Dielectric Strength Between Open Contacts

2000 Vrms

Input Switching Control Type

Random

Dielectric Strength Between Coil and Contacts

3000 Vrms

Switching Current

500mA

Contact (DC) Max Power Rating R Load

10W@1000VDC

Features

Diode, EMI Shielded

Height

8.13mm

Width

6.22mm

Length - Termination

0.0031 inch

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
