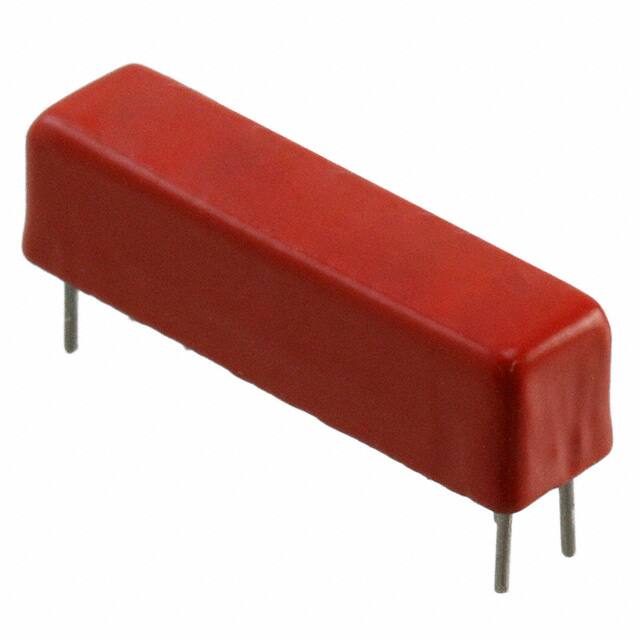

Factory Lead Time

22 Weeks

Mount

Through Hole

Mounting Type

Through Hole

CoilResistance

100Ohm

Operating Temperature

-20°C~125°C

Packaging

Tube

Series

2270

Published

2012

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

8

Termination

PC Pin

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

Termination Style

PC Pin

Body Length or Diameter

20.57mm

Body Breadth

5.33 mm

Physical Dimension

20.57mm x 5.33mm x 6.23mm

Insulation Resistance

1000000000000Ohm

Contact Current(DC)-Max

0.5A

Contact Voltage(DC)-Max

200V

Throw Configuration

SPST

Contact Form

SPST-NO (1 Form A)

Relay Type

Reed

Contact Current(AC)-Max

0.5A

Contact (AC) Max Rating R Load

0.5A@200VAC

Operate Time

0.5ms

Coil Voltage

5VDC

Coil Type

Non Latching

Switching Voltage

200VAC 200VDC -Max

Coil Current

50mA

Release Time

0.1ms

Contact (DC) Max Rating R Load

0.5A@200VDC

Must Operate Voltage

2.5VDC

Must Release Voltage

0.4VDC

Contact Voltage(AC)-Max

200V

Contact/Output Supply Type

AC/DC

Relay Action

LATCHED

Coil Voltage (DC)

5V

Coil/Input Supply Type

DC

PCB Hole Count

8

Seal Rating

Sealed - Hermetically

Dielectric Strength Between Open Contacts

200 Vrms

Input Switching Control Type

Random

Dielectric Strength Between Coil and Contacts

1500 Vrms

Switching Current

500mA

Contact (DC) Max Power Rating R Load

10W@200VDC

Body Height

6.23mm

Length - Termination

0.0032 inch

REACH SVHC

Unknown

RoHS Status

ROHS3 Compliant
