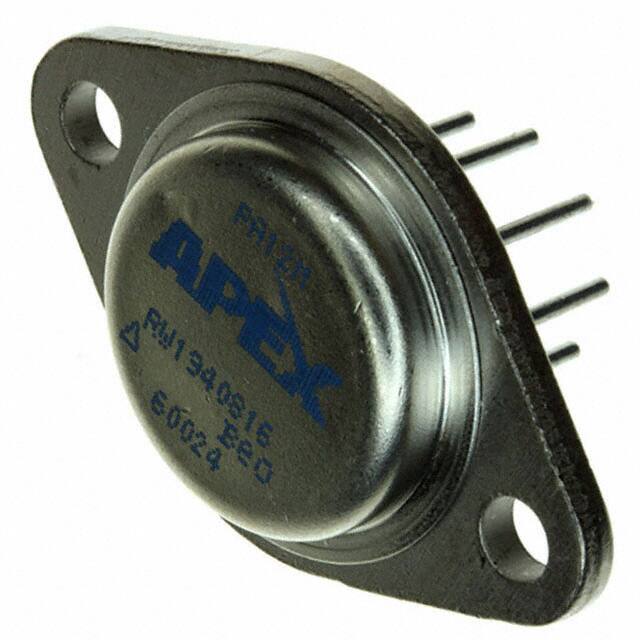

Factory Lead Time

8 Weeks

Mount

Through Hole

Mounting Type

Through Hole

Package / Case

TO-3-8

Number of Pins

2

Frequency - Gain Bandwidth Product (GBP)

4MHz

Usage Level

Military grade

Operating Temperature

-55°C~125°C

Packaging

Tube

Series

Apex Precision Power®

Published

2015

JESD-609 Code

e0

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

8

ECCN Code

EAR99

Terminal Finish

Tin/Lead (Sn/Pb)

Voltage - Supply

40V

Terminal Position

BOTTOM

Terminal Form

PIN/PEG

Number of Functions

1

Base Part Number

PA12

JESD-30 Code

O-MBFM-P8

Qualification Status

Not Qualified

Power Supplies

+-40V

Number of Circuits

1

Current - Supply

25mA

Slew Rate

2.5V/μs

Architecture

VOLTAGE-FEEDBACK

Amplifier Type

Power

Common Mode Rejection Ratio

100 dB

Current - Input Bias

12nA

Voltage - Supply, Single/Dual (±)

20V~90V ±10V~45V

Output Current per Channel

10A

Input Offset Voltage (Vos)

2mV

Neg Supply Voltage-Nom (Vsup)

-40V

Unity Gain BW-Nom

4000 kHz

Average Bias Current-Max (IIB)

0.03μA

Low-Offset

NO

Frequency Compensation

YES

Supply Voltage Limit-Max

50V

Bias Current-Max (IIB) @25C

0.03μA

Screening Level

MIL-STD-883 Class B (Modified)

Neg Supply Voltage-Max (Vsup)

-50V

Power

YES

Voltage Gain-Min

63000

RoHS Status

Non-RoHS Compliant
