Mount

Through Hole

Mounting Type

Through Hole

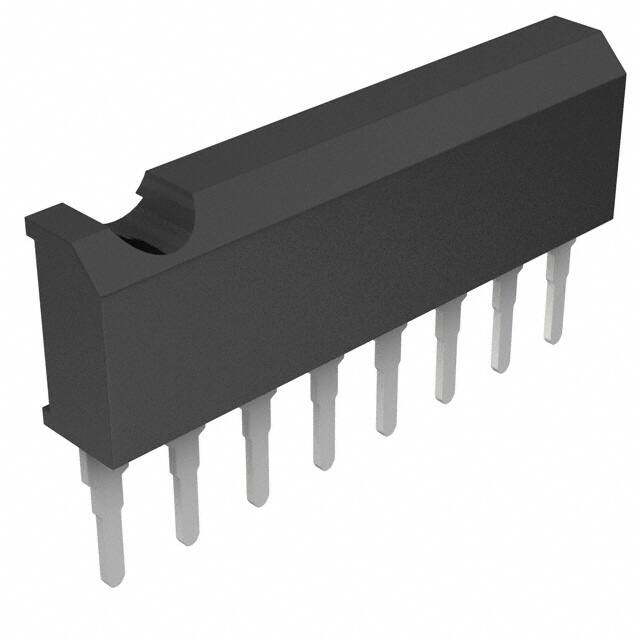

Package / Case

8-SIP

Number of Pins

8

Frequency - Gain Bandwidth Product (GBP)

10MHz

Operating Temperature

-40°C~85°C

Packaging

Tube

Published

1998

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

8

ECCN Code

EAR99

Terminal Finish

TIN/TIN COPPER

Voltage - Supply

15V

Terminal Position

SINGLE

Peak Reflow Temperature (Cel)

260

Number of Functions

2

Time@Peak Reflow Temperature-Max (s)

10

Base Part Number

BA15218

JESD-30 Code

R-PSIP-T8

Qualification Status

Not Qualified

Number of Circuits

2

Current - Supply

5mA

Slew Rate

3V/μs

Architecture

VOLTAGE-FEEDBACK

Amplifier Type

General Purpose

Common Mode Rejection Ratio

90 dB

Current - Input Bias

50nA

Voltage - Supply, Single/Dual (±)

4V~32V ±2V~16V

Output Current per Channel

50mA

Input Offset Voltage (Vos)

500μV

Neg Supply Voltage-Nom (Vsup)

-15V

Unity Gain BW-Nom

10000 kHz

Average Bias Current-Max (IIB)

0.005μA

Low-Offset

NO

Frequency Compensation

YES

Supply Voltage Limit-Max

18V

Low-Bias

NO

Micropower

NO

Bias Current-Max (IIB) @25C

0.5μA

Programmable Power

NO

Neg Supply Voltage-Max (Vsup)

-18V

Wideband

NO

Power

NO

Common-mode Reject Ratio-Min

70 dB

Length

19.3mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
