Factory Lead Time

20 Weeks

Contact Plating

Lead, Tin

Mount

Through Hole

Mounting Type

Through Hole

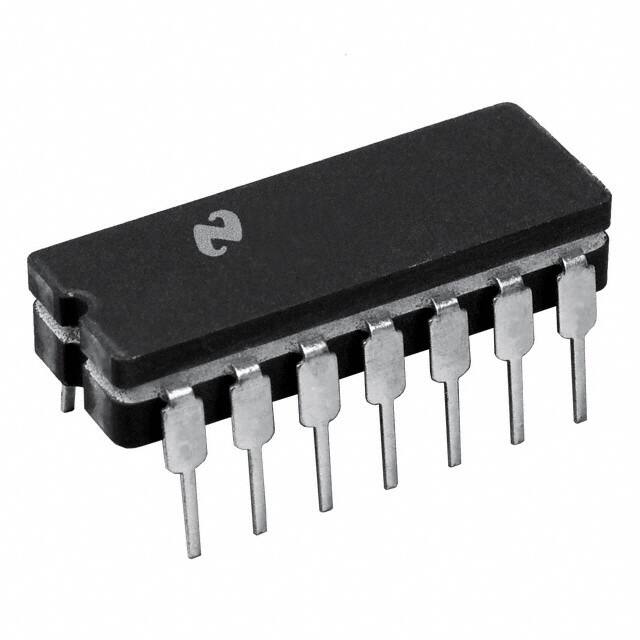

Package / Case

14-CDIP (0.300, 7.62mm)

Number of Pins

14

Frequency - Gain Bandwidth Product (GBP)

1.2MHz

Current - Supply (Nom)

700μA

Usage Level

Military grade

Operating Temperature

-55°C~125°C

Packaging

Tube

JESD-609 Code

e0

Part Status

ACTIVE (Last Updated: 1 day ago)

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

14

ECCN Code

EAR99

Terminal Finish

Tin/Lead (Sn/Pb)

Voltage - Supply

16V

Terminal Position

DUAL

Number of Functions

4

Base Part Number

LM124

Power Supplies

+-1.5/+-16/3/32V

Number of Channels

4

Current - Output

40mA

Current - Supply

1.5mA

Slew Rate

0.5V/μs

Architecture

VOLTAGE-FEEDBACK

Amplifier Type

General Purpose

Common Mode Rejection Ratio

70 dB

Current - Input Bias

20nA

Voltage - Supply, Single/Dual (±)

3V~32V ±1.5V~16V

Output Current per Channel

40mA

Input Offset Voltage (Vos)

2mV

Unity Gain BW-Nom

1200 kHz

Voltage Gain

100dB

Average Bias Current-Max (IIB)

0.3μA

Power Supply Rejection Ratio (PSRR)

65dB

Low-Offset

NO

Frequency Compensation

YES

Supply Voltage Limit-Max

32V

Voltage - Input Offset

3mV

Low-Bias

NO

Micropower

YES

Bias Current-Max (IIB) @25C

0.15μA

Programmable Power

NO

Screening Level

MIL-STD-883

Wideband

NO

Input Offset Current-Max (IIO)

0.1μA

Height

5.08mm

Length

19.56mm

Width

6.67mm

Thickness

4.57mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

Non-RoHS Compliant

Lead Free

Contains Lead
