Mounting Type

Through Hole

Package / Case

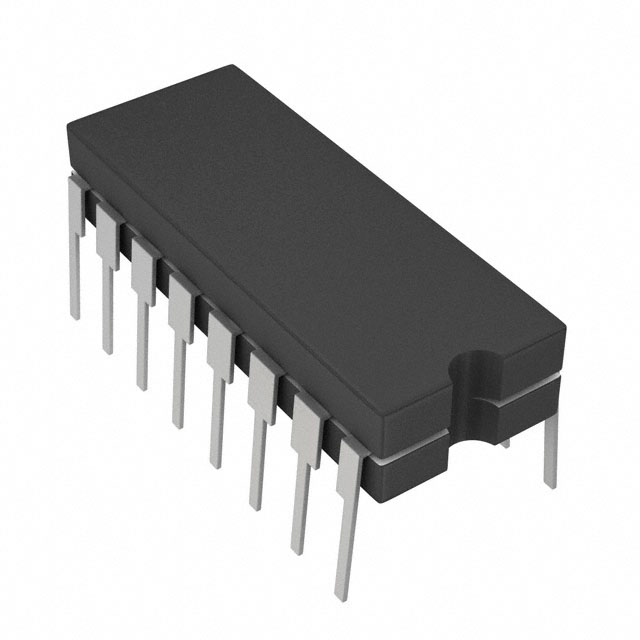

16-CDIP (0.300, 7.62mm)

Surface Mount

NO

Operating Temperature

-40°C~85°C

Published

2009

JESD-609 Code

e0

Pbfree Code

no

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

16

ECCN Code

EAR99

Terminal Finish

Tin/Lead (Sn/Pb)

Terminal Position

DUAL

Peak Reflow Temperature (Cel)

240

Number of Functions

4

Supply Voltage

15V

Reach Compliance Code

not_compliant

Time@Peak Reflow Temperature-Max (s)

20

Output

SEPARATE OUTPUT

Pin Count

16

JESD-30 Code

R-GDIP-T16

Qualification Status

Not Qualified

Power Supplies

12/+-15V

Number of Channels

1

Number of Circuits

4

Voltage - Supply, Single/Dual (±)

10V~30V ±4.5V~20V

Neg Supply Voltage-Nom (Vsup)

-15V

On-State Resistance (Max)

85Ohm

Multiplexer/Demultiplexer Circuit

1:1

Off-state Isolation-Nom

60 dB

Current - Leakage (IS(off)) (Max)

500pA

Channel Capacitance (CS(off), CD(off))

4pF 4pF

On-state Resistance Match-Nom

4Ohm

Switch Circuit

SPST - NO

Switch Time (Ton, Toff) (Max)

250ns, 170ns

Charge Injection

5pC

Channel-to-Channel Matching (ΔRon)

4 Ω (Max)

Switching

BREAK-BEFORE-MAKE

Switch-on Time-Max

250ns

Switch-off Time-Max

120ns

Normal Position

NO

Height Seated (Max)

5.08mm

Width

7.62mm

RoHS Status

ROHS3 Compliant
