Lifecycle Status

OBSOLETE (Last Updated: 2 days ago)

Mounting Type

Surface Mount

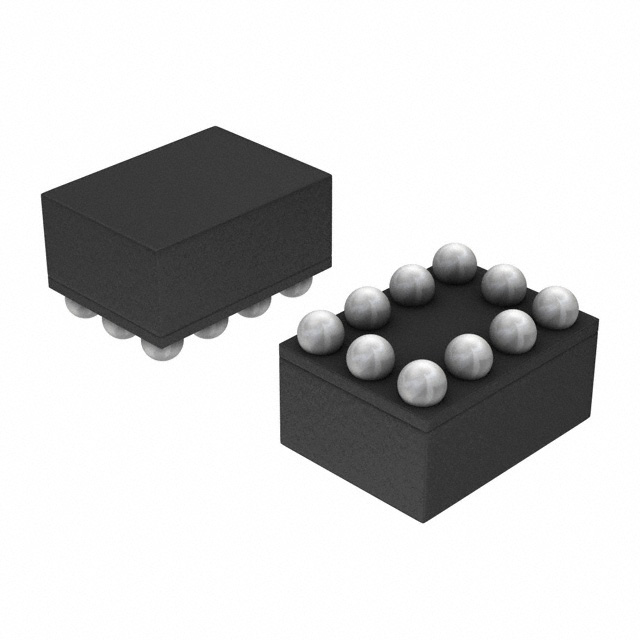

Package / Case

10-UFBGA, FCBGA

Surface Mount

YES

Number of Pins

10

Turn Off Delay Time

40 ns

Operating Temperature

-40°C~85°C TA

Packaging

Tape & Reel (TR)

Published

2007

JESD-609 Code

e0

Pbfree Code

no

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

10

Resistance

2.1Ohm

Terminal Finish

Tin/Lead (Sn/Pb)

Voltage - Supply

3V

Terminal Position

BOTTOM

Terminal Form

BALL

Peak Reflow Temperature (Cel)

240

Number of Functions

2

Terminal Pitch

0.5mm

Reach Compliance Code

not_compliant

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

NLAS4717

Current - Supply (Max)

1μA

Number of Outputs

4

Qualification Status

Not Qualified

Operating Supply Voltage

5V

Number of Channels

2

Turn On Delay Time

30 ns

Current - Supply

1μA

Supply Type

Single

-3db Bandwidth

40MHz

On-State Resistance (Max)

3.5Ohm

Multiplexer/Demultiplexer Circuit

2:1

Off-state Isolation-Nom

75 dB

Current - Leakage (IS(off)) (Max)

1nA

Channel Capacitance (CS(off), CD(off))

30pF

On-state Resistance Match-Nom

0.1Ohm

Switch Circuit

SPDT

Switch Time (Ton, Toff) (Max)

30ns, 40ns

Charge Injection

9pC

Channel-to-Channel Matching (ΔRon)

100m Ω

Switching

BREAK-BEFORE-MAKE

Voltage - Supply, Single (V+)

1.8V~5.5V

Voltage - Supply (Max)

5.5V

Voltage - Supply (Min)

1.8V

Normal Position

NC

Length

1.965mm

Height Seated (Max)

0.65mm

RoHS Status

Non-RoHS Compliant

Lead Free

Contains Lead
