Lifecycle Status

ACTIVE (Last Updated: 5 days ago)

Factory Lead Time

6 Weeks

Contact Plating

Copper, Silver, Tin

Mount

Surface Mount

Mounting Type

Surface Mount

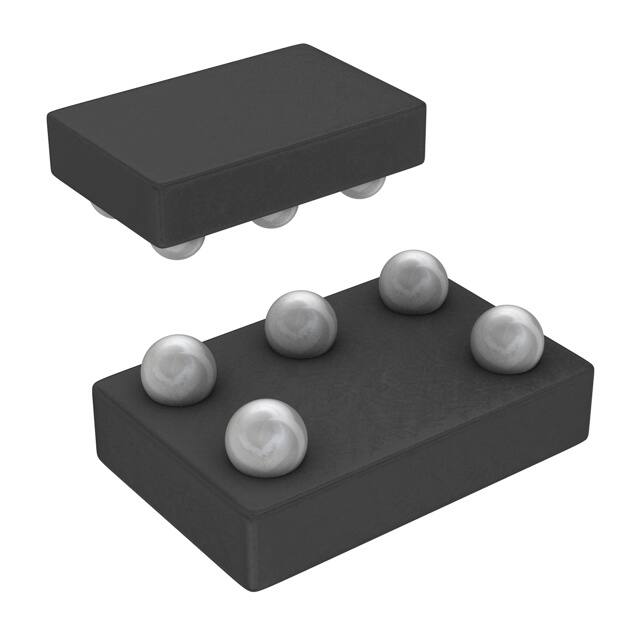

Package / Case

5-XFBGA, DSBGA

Number of Pins

5

Weight

1.587573mg

Turn Off Delay Time

4.5 ns

Operating Temperature

-40°C~85°C TA

Packaging

Tape & Reel (TR)

JESD-609 Code

e1

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

ECCN Code

EAR99

Resistance

10Ohm

Terminal Finish

Tin/Silver/Copper (Sn/Ag/Cu)

Terminal Position

BOTTOM

Terminal Form

BALL

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Supply Voltage

1.8V

Base Part Number

TS5A1066

Pin Count

5

Polarity

Non-Inverting

Number of Channels

1

Max Supply Voltage

5.5V

Min Supply Voltage

1.65V

Operating Supply Current

50nA

Nominal Supply Current

50nA

Max Supply Current

1μA

Throw Configuration

SPST

Turn On Delay Time

5.5 ns

Supply Type

Single

Bandwidth

400MHz

On-State Resistance (Max)

10Ohm

High Level Output Current

50mA

Low Level Output Current

50mA

Multiplexer/Demultiplexer Circuit

1:1

Off-state Isolation-Nom

68 dB

Current - Leakage (IS(off)) (Max)

200nA

Channel Capacitance (CS(off), CD(off))

6.8pF 6.8pF

Switch Circuit

SPST - NO

Switch Time (Ton, Toff) (Max)

5.5ns, 4.5ns

Charge Injection

1pC

Switching

BREAK-BEFORE-MAKE

Voltage - Supply, Single (V+)

1.65V~5.5V

Normal Position

NO

Height

500μm

Length

1.75mm

Width

1.25mm

Thickness

310μm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
