Factory Lead Time

13 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

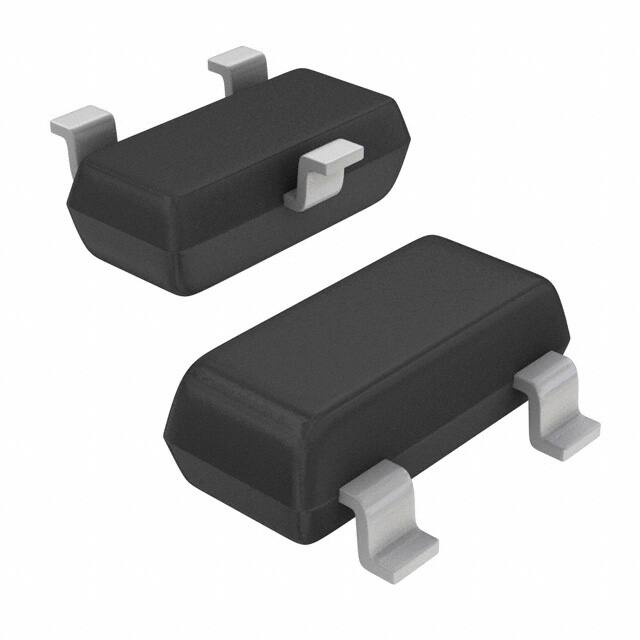

Package / Case

TO-236-3, SC-59, SOT-23-3

Transistor Element Material

SILICON

Collector-Emitter Breakdown Voltage

50V

Number of Elements

1

Operating Temperature (Max.)

150°C

Packaging

Tape & Reel (TR)

JESD-609 Code

e1

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Terminal Finish

Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

Additional Feature

BUILT-IN BIAS RESISTOR RATIO IS 1

HTS Code

8541.21.00.75

Max Power Dissipation

200mW

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Time@Peak Reflow Temperature-Max (s)

10

Pin Count

3

JESD-30 Code

R-PDSO-G3

Qualification Status

Not Qualified

Configuration

SINGLE WITH BUILT-IN RESISTOR

Power - Max

200mW

Transistor Application

SWITCHING

Polarity/Channel Type

PNP

Transistor Type

PNP - Pre-Biased

Collector Emitter Voltage (VCEO)

300mV

Max Collector Current

500mA

DC Current Gain (hFE) (Min) @ Ic, Vce

47 @ 50mA 5V

Current - Collector Cutoff (Max)

500nA

Vce Saturation (Max) @ Ib, Ic

300mV @ 2.5mA, 50mA

Transition Frequency

200MHz

Max Breakdown Voltage

50V

Frequency - Transition

200MHz

Resistor - Base (R1)

4.7 k Ω

Resistor - Emitter Base (R2)

4.7 k Ω

VCEsat-Max

0.3 V

RoHS Status

ROHS3 Compliant
