Lifecycle Status

OBSOLETE (Last Updated: 2 days ago)

Mounting Type

Surface Mount

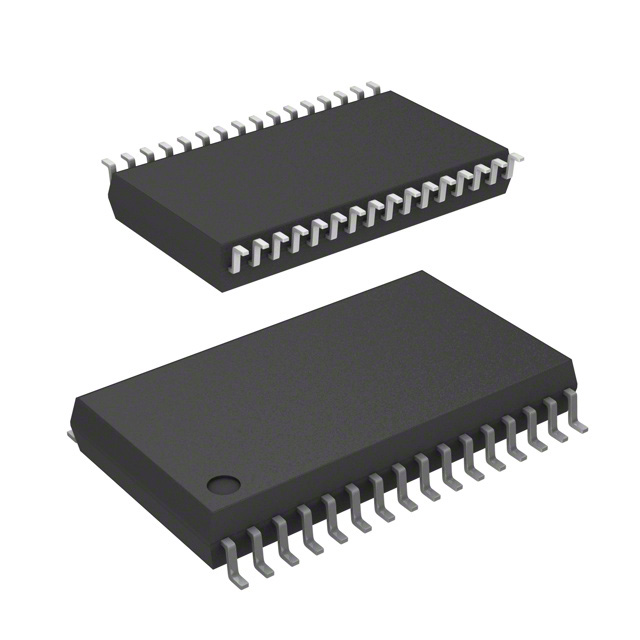

Package / Case

32-SOIC (0.295, 7.50mm Width)

Surface Mount

YES

Number of Pins

32

Operating Temperature

0°C~70°C TA

Packaging

Tube

Published

2006

JESD-609 Code

e0

Pbfree Code

no

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

2 (1 Year)

Number of Terminations

32

ECCN Code

EAR99

Terminal Finish

Tin/Lead (Sn/Pb)

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

240

Terminal Pitch

1.27mm

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

CS5301

Function

Step-Down

Number of Outputs

3

Output Type

Transistor Driver

Input Voltage-Nom

5V

Analog IC - Other Type

SWITCHING CONTROLLER

Output Configuration

Positive

Voltage - Supply (Vcc/Vdd)

4.3V~20V

Control Features

Current Limit, Frequency Control, Power Good

Input Voltage (Min)

4.7V

Topology

Buck

Control Mode

VOLTAGE-MODE

Output Current-Max

1.5A

Frequency - Switching

250kHz~800kHz

Input Voltage (Max)

14V

Control Technique

PULSE WIDTH MODULATION

Synchronous Rectifier

Yes

Switcher Configuration

PHASE-SHIFT

Max Frequency

1MHz

Clock Sync

No

Length

20.725mm

Height Seated (Max)

2.54mm

Width

7.5mm

RoHS Status

Non-RoHS Compliant

Lead Free

Contains Lead
