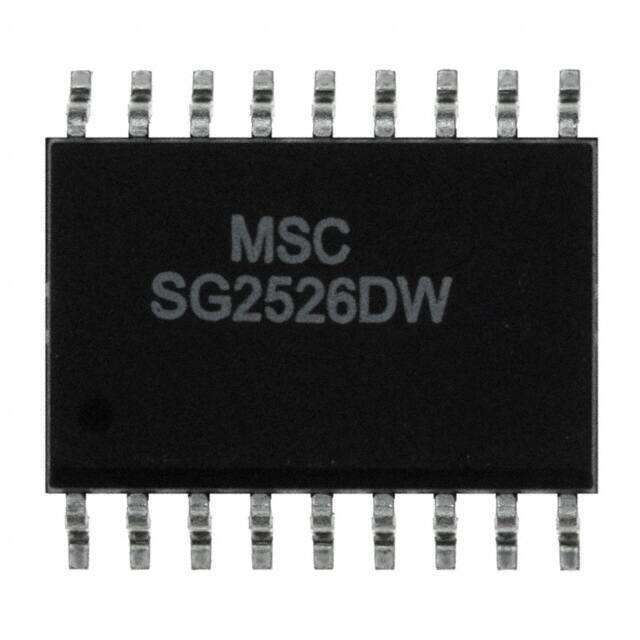

Lifecycle Status

IN PRODUCTION (Last Updated: 2 weeks ago)

Mount

Surface Mount

Mounting Type

Surface Mount

Package / Case

18-SOIC (0.295, 7.50mm Width)

Number of Pins

18

Operating Temperature

-25°C~85°C TA

Published

1997

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Discontinued

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

18

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Frequency

500kHz

Time@Peak Reflow Temperature-Max (s)

40

Base Part Number

SG*526

Function

Step-Down, Step-Up/Step-Down

Number of Outputs

2

Output Voltage

5V

Output Type

Transistor Driver

Input Voltage-Nom

15V

Analog IC - Other Type

SWITCHING CONTROLLER

Output Configuration

Positive

Voltage - Supply (Vcc/Vdd)

8V~35V

Quiescent Current

18mA

Control Features

Dead Time Control, Enable, Frequency Control, Reset, Soft Start

Input Voltage (Min)

8V

Topology

Buck, Flyback

Control Mode

VOLTAGE-MODE

Frequency - Switching

1Hz~350kHz

Input Voltage (Max)

35V

Control Technique

PULSE WIDTH MODULATION

Rise Time

300ns

Synchronous Rectifier

Yes

Fall Time (Typ)

100 ns

Switcher Configuration

PUSH-PULL

Output Voltage-Max

5.05V

Output Voltage-Min

4.95V

Duty Cycle (Max)

49%

Clock Sync

No

Output Phases

1

Width

7.5mm

RoHS Status

RoHS Compliant

Lead Free

Lead Free
