Lifecycle Status

IN PRODUCTION (Last Updated: 2 weeks ago)

Mount

Through Hole

Mounting Type

Through Hole

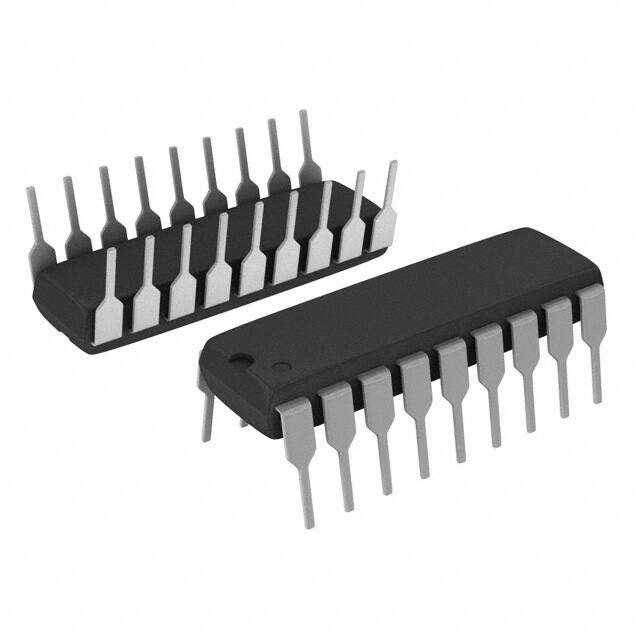

Package / Case

18-DIP (0.300, 7.62mm)

Number of Pins

18

Weight

1.270087g

Operating Temperature

-25°C~85°C TA

Packaging

Tube

Published

1997

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Discontinued

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

18

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

Terminal Position

DUAL

Frequency

500kHz

Base Part Number

SG*526

Function

Step-Down, Step-Up/Step-Down

Number of Outputs

2

Output Voltage

5V

Output Type

Transistor Driver

Input Voltage-Nom

15V

Analog IC - Other Type

SWITCHING CONTROLLER

Operating Supply Current

18mA

Output Configuration

Positive

Output Current

100mA

Voltage - Supply (Vcc/Vdd)

8V~35V

Quiescent Current

18mA

Control Features

Dead Time Control, Enable, Frequency Control, Reset, Soft Start

Input Voltage (Min)

8V

Topology

Buck, Flyback

Control Mode

VOLTAGE-MODE

Frequency - Switching

1Hz~350kHz

Control Technique

PULSE WIDTH MODULATION

Rise Time

300ns

Synchronous Rectifier

Yes

Fall Time (Typ)

100 ns

Switcher Configuration

PUSH-PULL

Max Duty Cycle

49 %

Clock Sync

No

Output Phases

1

Height Seated (Max)

5.08mm

RoHS Status

RoHS Compliant

Lead Free

Lead Free
