Mount

Surface Mount

Mounting Type

Surface Mount

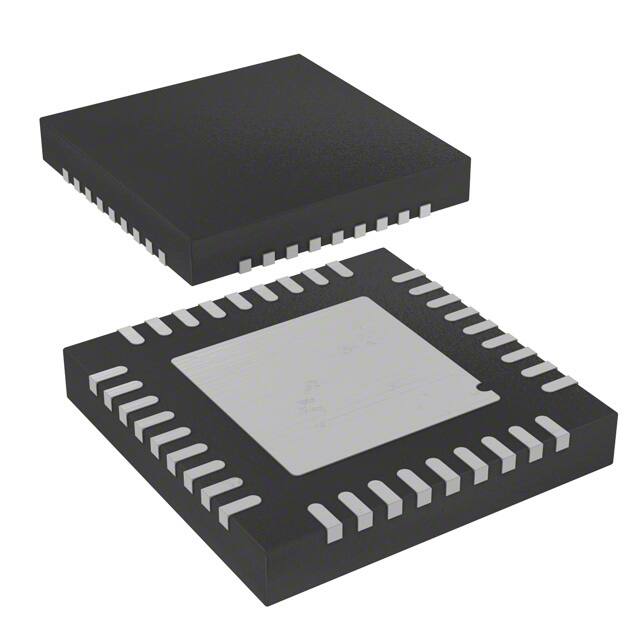

Package / Case

36-VFQFN Exposed Pad

Number of Pins

36

Operating Temperature

-40°C~125°C TJ

Packaging

Tube

JESD-609 Code

e3

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

36

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn) - annealed

Terminal Position

QUAD

Peak Reflow Temperature (Cel)

260

Terminal Pitch

0.5mm

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

L6712

Function

Step-Down

Number of Outputs

2

Output Voltage

3.3V

Output Type

Transistor Driver

Operating Supply Voltage

13.2V

Input Voltage-Nom

12V

Analog IC - Other Type

SWITCHING CONTROLLER

Output Configuration

Positive

Output Current

70A

Voltage - Supply (Vcc/Vdd)

7.5V~15V

Quiescent Current

10mA

Control Features

Frequency Control, Phase Control, Power Good

Max Output Voltage

3.3V

Topology

Buck

Control Mode

CURRENT-MODE

Frequency - Switching

150kHz

Max Input Voltage

12V

Control Technique

PULSE WIDTH MODULATION

Synchronous Rectifier

Yes

Min Output Voltage

900mV

Switcher Configuration

PHASE-SHIFT

Max Frequency

178kHz

Duty Cycle (Max)

80%

Clock Sync

No

Height

880μm

Length

6mm

Width

6mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
