Lifecycle Status

NRND (Last Updated: 8 months ago)

Factory Lead Time

42 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

Package / Case

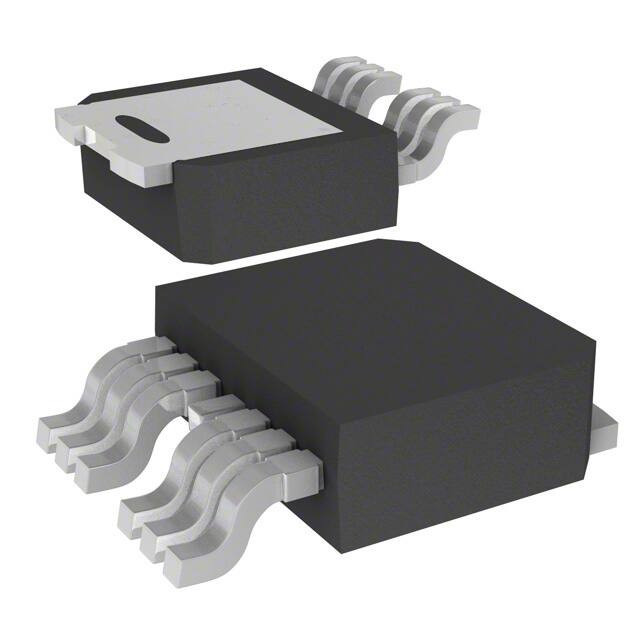

TO-252-7, DPak (6 Leads + Tab)

Number of Pins

7

Operating Temperature

-40°C~150°C TJ

Packaging

Tube

Series

VIPower™

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

7

ECCN Code

EAR99

Resistance

16mOhm

Terminal Finish

Matte Tin (Sn)

Terminal Position

SINGLE

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Supply Voltage

13V

Terminal Pitch

0.85mm

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

VN5E016

Pin Count

7

Number of Outputs

1

Output Type

N-Channel

Max Output Current

73A

Supply Voltage-Max (Vsup)

28V

Power Supplies

8/28V

Supply Voltage-Min (Vsup)

4.5V

Interface

On/Off

Nominal Supply Current

1.5mA

Output Configuration

High Side

Voltage - Supply (Vcc/Vdd)

Not Required

Input Type

Non-Inverting

Switch Type

General Purpose

Output Current per Channel

54A

Ratio - Input:Output

1:1

Voltage - Load

4.5V~28V

Driver Number of Bits

1

Fault Protection

Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage

Output Peak Current Limit-Nom

73A

Rds On (Typ)

16m Ω (Max)

High Side Driver

YES

Features

Auto Restart

Length

6.5mm

Height Seated (Max)

2.4mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
