Lifecycle Status

NRND (Last Updated: 8 months ago)

Factory Lead Time

42 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

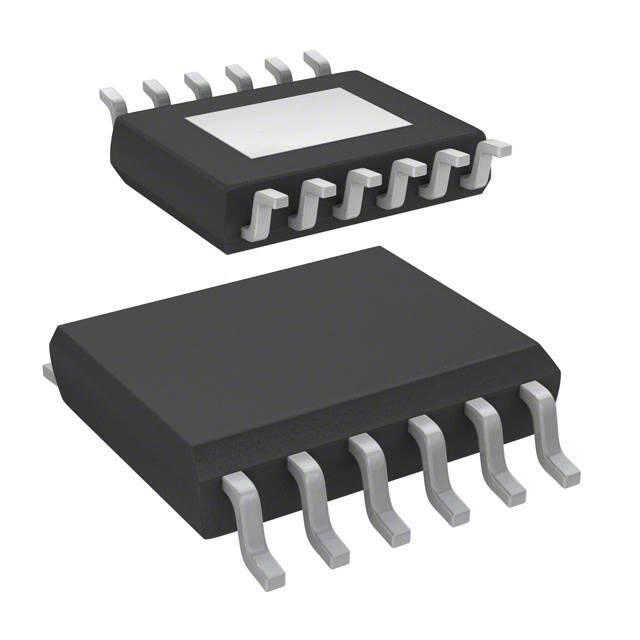

Package / Case

12-PowerLSOP (0.154, 3.90mm Width)

Number of Pins

12

Turn Off Delay Time

30 μs

Operating Temperature

-40°C~150°C TJ

Packaging

Tube

Series

VIPower™

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

12

ECCN Code

EAR99

Resistance

160mOhm

Terminal Finish

Matte Tin (Sn)

Max Power Dissipation

54W

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

2

Supply Voltage

13V

Terminal Pitch

0.8mm

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

VND810

Pin Count

12

Number of Outputs

2

Output Type

N-Channel

Max Output Current

3.5A

Operating Supply Voltage

13V

Supply Voltage-Max (Vsup)

36V

Power Supplies

8/36V

Interface

On/Off

Nominal Supply Current

25μA

Output Configuration

High Side

Power Dissipation

54W

Voltage - Supply (Vcc/Vdd)

Not Required

Max Supply Current

25μA

Input Type

Non-Inverting

Turn On Delay Time

30 μs

Switch Type

General Purpose

Ratio - Input:Output

1:1

Voltage - Load

5.5V~36V

Driver Number of Bits

2

Fault Protection

Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage

Output Peak Current Limit-Nom

5A

Rds On (Typ)

160m Ω (Max)

Built-in Protections

TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

Output Current Flow Direction

SOURCE

Features

Auto Restart, Status Flag

Length

4.9mm

Width

3.9mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant
