Mount

Surface Mount

Mounting Type

Surface Mount

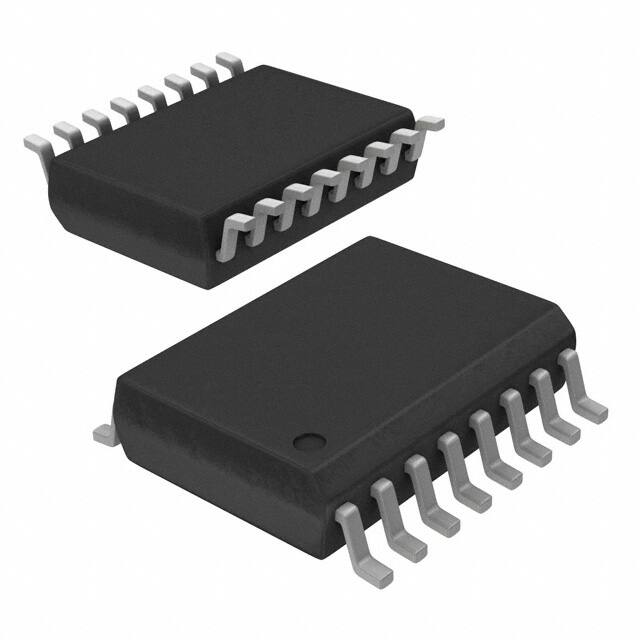

Package / Case

16-SOIC (0.295, 7.50mm Width)

Number of Pins

16

Operating Temperature

-40°C~150°C TJ

Packaging

Tube

JESD-609 Code

e4

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

16

ECCN Code

EAR99

Resistance

30mOhm

Terminal Finish

Nickel/Palladium/Gold (Ni/Pd/Au)

Max Power Dissipation

8.3W

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

2

Supply Voltage

13V

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

VND600

Pin Count

16

Number of Outputs

2

Qualification Status

Not Qualified

Output Type

N-Channel

Max Output Current

25A

Operating Supply Voltage

36V

Interface

On/Off

Nominal Supply Current

6mA

Output Configuration

High Side

Power Dissipation

8.3W

Output Current

25A

Voltage - Supply (Vcc/Vdd)

Not Required

Max Supply Current

6mA

Input Type

Non-Inverting

Switch Type

General Purpose

Min Input Voltage

5.5V

Max Input Voltage

36V

Ratio - Input:Output

1:1

Voltage - Load

5.5V~36V

Driver Number of Bits

2

Fault Protection

Current Limiting (Fixed), Over Temperature, Over Voltage

Rds On (Typ)

35m Ω (Max)

Built-in Protections

TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

Length

10.3mm

Width

7.5mm

RoHS Status

ROHS3 Compliant
