Mount

Surface Mount

Number of Pins

3

Weight

1.437803 g

Case/Package

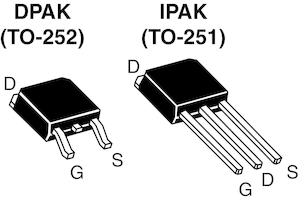

DPAK

Fall Time

16 ns

Number of Elements

1

RoHS

Compliant

Schedule B

8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080

Turn Off Delay Time

33 ns

Packaging

Cut Tape

Resistance

3 Ω

Max Operating Temperature

150 °C

Min Operating Temperature

-55 °C

Max Power Dissipation

2.5 W

Number of Channels

1

Voltage

500 V

Element Configuration

Single

Current

24 A

Power Dissipation

2.5 W

Turn On Delay Time

8 ns

Rise Time

8.6 ns

Drain to Source Voltage (Vdss)

500 V

Continuous Drain Current (ID)

2.4 A

Threshold Voltage

4 V

Gate to Source Voltage (Vgs)

20 V

Drain to Source Breakdown Voltage

500 V

Input Capacitance

360 pF

Drain to Source Resistance

3 Ω

Rds On Max

3 Ω

Nominal Vgs

2 V

Height

2.39 mm

Length

6.73 mm

Width

6.22 mm

Radiation Hardening

No

REACH SVHC

Unknown

Lead Free

Lead Free
