Lifecycle Status

LAST SHIPMENTS (Last Updated: 4 days ago)

Mount

Surface Mount

Mounting Type

Surface Mount

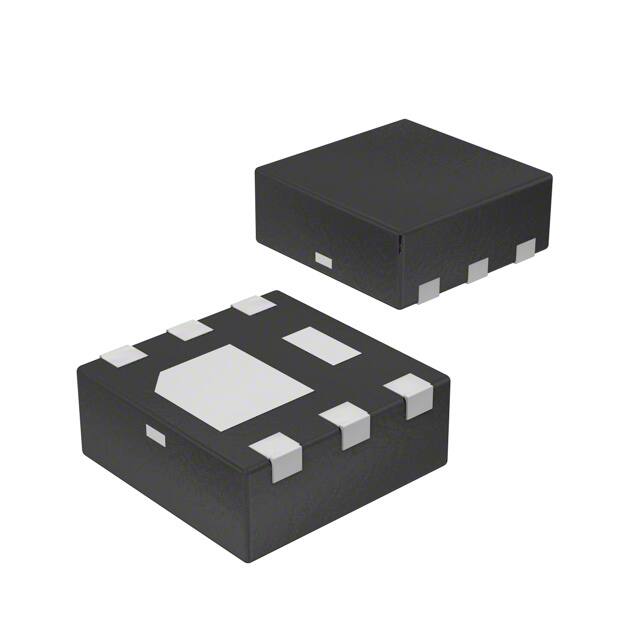

Package / Case

6-WDFN Exposed Pad

Number of Pins

6

Weight

30mg

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

9.4A Ta

Drive Voltage (Max Rds On, Min Rds On)

1.5V 4.5V

Number of Elements

1

Power Dissipation (Max)

1.9W Ta

Turn Off Delay Time

37 ns

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

PowerTrench®

Published

2009

JESD-609 Code

e4

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

ECCN Code

EAR99

Terminal Finish

Nickel/Palladium/Gold (Ni/Pd/Au)

HTS Code

8541.29.00.95

Terminal Position

DUAL

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Power Dissipation

1.9W

Case Connection

DRAIN

Turn On Delay Time

9 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

14.5m Ω @ 9.4A, 4.5V

Vgs(th) (Max) @ Id

1V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

1680pF @ 10V

Gate Charge (Qg) (Max) @ Vgs

17.5nC @ 4.5V

Rise Time

11ns

Vgs (Max)

±8V

Fall Time (Typ)

11 ns

Continuous Drain Current (ID)

9.4A

Gate to Source Voltage (Vgs)

8V

Drain-source On Resistance-Max

0.0145Ohm

Drain to Source Breakdown Voltage

20V

Feedback Cap-Max (Crss)

185 pF

Height

750μm

Length

2mm

Width

2mm

Radiation Hardening

No

RoHS Status

RoHS Compliant
