Mount

Through Hole

Mounting Type

Through Hole

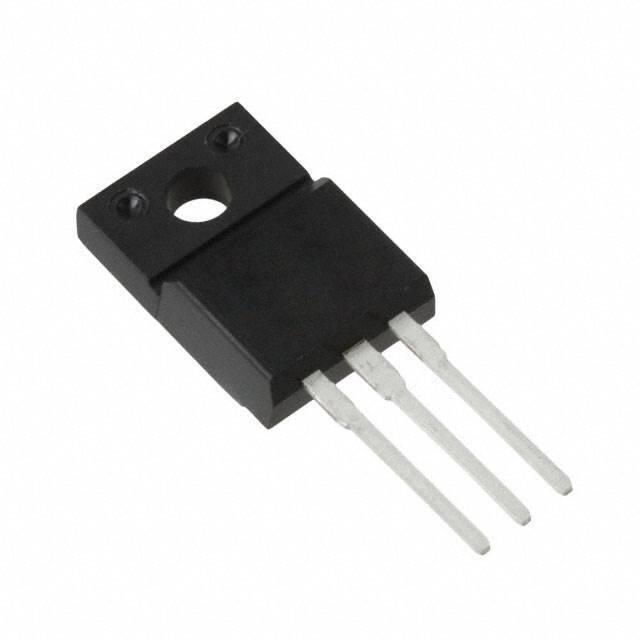

Package / Case

TO-220-3 Full Pack

Number of Pins

3

Current - Continuous Drain (Id) @ 25℃

11A Ta

Drive Voltage (Max Rds On, Min Rds On)

10V

Power Dissipation (Max)

2W Ta 40W Tc

Turn Off Delay Time

146 ns

Operating Temperature

-55°C~150°C TJ

Packaging

Bulk

Published

2010

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Terminal Finish

Tin/Copper/Silver/Nickel (Sn/Cu/Ag/Ni)

Element Configuration

Single

Power Dissipation

40W

Turn On Delay Time

26.5 ns

FET Type

N-Channel

Rds On (Max) @ Id, Vgs

430m Ω @ 8A, 10V

Input Capacitance (Ciss) (Max) @ Vds

1200pF @ 30V

Gate Charge (Qg) (Max) @ Vgs

48.6nC @ 10V

Rise Time

78ns

Vgs (Max)

±30V

Fall Time (Typ)

57 ns

Continuous Drain Current (ID)

11A

Gate to Source Voltage (Vgs)

30V

Drain to Source Breakdown Voltage

500V

Radiation Hardening

No

RoHS Status

RoHS Compliant
