Mount

Surface Mount

Mounting Type

Surface Mount

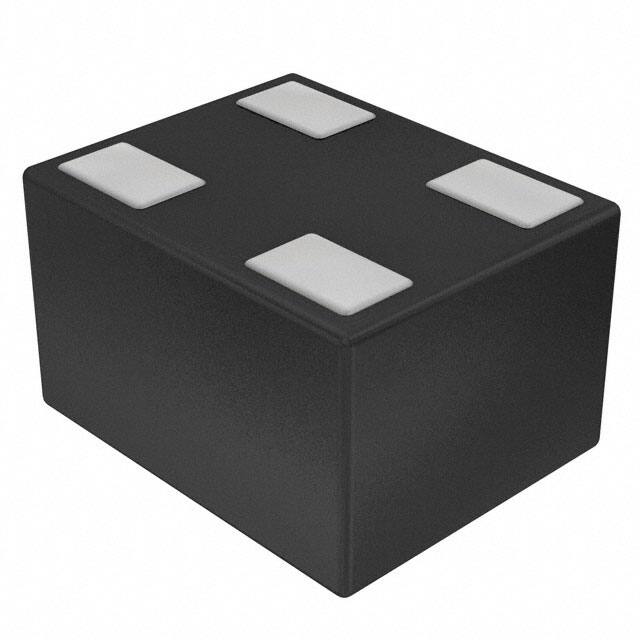

Package / Case

4-UFDFN

Number of Pins

4

Supplier Device Package

4-ECSP1008

Current - Continuous Drain (Id) @ 25℃

150mA Ta

Drive Voltage (Max Rds On, Min Rds On)

1.5V 4V

Power Dissipation (Max)

150mW Ta

Operating Temperature

150°C TJ

Packaging

Tape & Reel (TR)

Published

2011

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Max Operating Temperature

150°C

Min Operating Temperature

-55°C

Element Configuration

Single

Power Dissipation

150mW

FET Type

N-Channel

Rds On (Max) @ Id, Vgs

3.7Ohm @ 80mA, 4V

Input Capacitance (Ciss) (Max) @ Vds

7pF @ 10V

Gate Charge (Qg) (Max) @ Vgs

1.58nC @ 10V

Drain to Source Voltage (Vdss)

30V

Vgs (Max)

±10V

Continuous Drain Current (ID)

150mA

Gate to Source Voltage (Vgs)

10V

Drain to Source Breakdown Voltage

30V

Input Capacitance

7pF

Drain to Source Resistance

3.7Ohm

Rds On Max

3.7 Ω

RoHS Status

RoHS Compliant
