Factory Lead Time

23 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

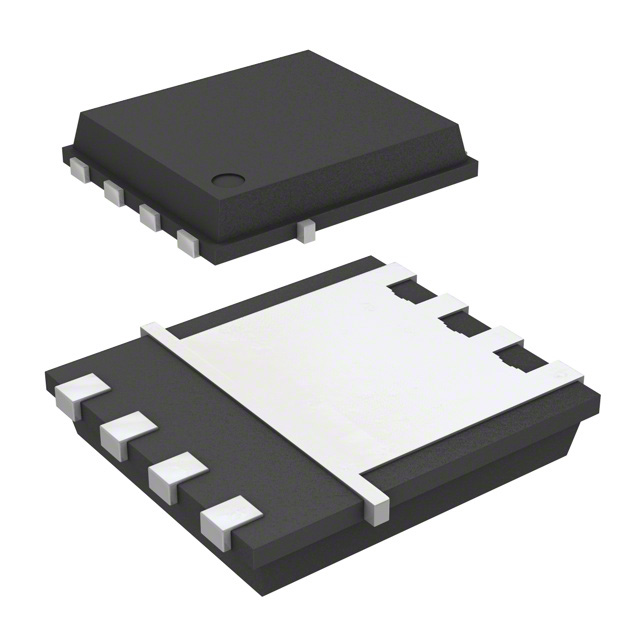

Package / Case

8-PowerTDFN

Number of Pins

8

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

60A Tc

Drive Voltage (Max Rds On, Min Rds On)

2.5V 10V

Number of Elements

1

Power Dissipation (Max)

2.3W Ta

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

1.4V @ 250μA

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Published

2009

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

Terminal Position

DUAL

Terminal Form

FLAT

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-PDSO-F5

Configuration

SINGLE WITH BUILT-IN DIODE

Operating Mode

ENHANCEMENT MODE

Case Connection

DRAIN

FET Type

P-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

2.5m Ω @ 25A, 10V

Input Capacitance (Ciss) (Max) @ Vds

12826pF @ 10V

Gate Charge (Qg) (Max) @ Vgs

476nC @ 10V

Drain to Source Voltage (Vdss)

20V

Vgs (Max)

±12V

Continuous Drain Current (ID)

60A

Drain-source On Resistance-Max

0.0025Ohm

Pulsed Drain Current-Max (IDM)

100A

DS Breakdown Voltage-Min

20V

REACH SVHC

not_compliant

RoHS Status

ROHS3 Compliant
