Mounting Type

Surface Mount

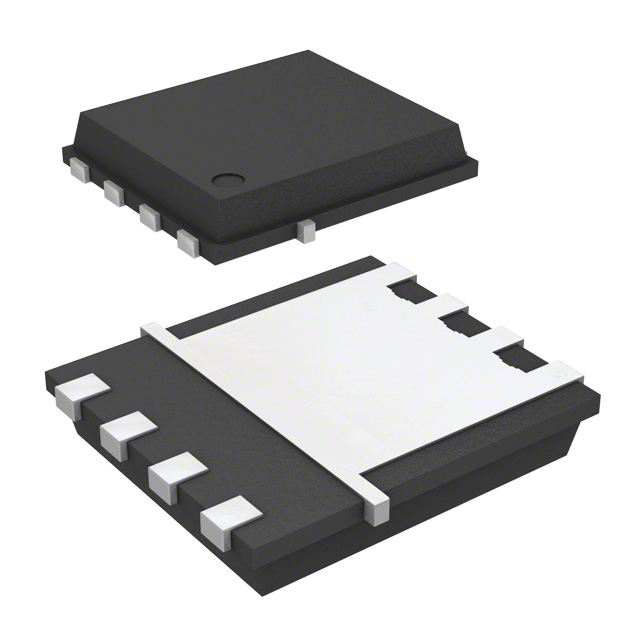

Package / Case

8-PowerTDFN

Surface Mount

YES

Transistor Element Material

SILICON

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

3V @ 250μA

Current - Continuous Drain (Id) @ 25℃

60A Tc

Drive Voltage (Max Rds On, Min Rds On)

4.5V 10V

Number of Elements

1

Power Dissipation (Max)

150W Tc

Operating Temperature

-55°C~175°C TJ

Packaging

Tape & Reel (TR)

Series

Automotive, AEC-Q101, PowerTrench®

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

Terminal Finish

Tin (Sn)

Terminal Position

DUAL

Terminal Form

FLAT

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-PDSO-F5

Configuration

SINGLE WITH BUILT-IN DIODE

Operating Mode

ENHANCEMENT MODE

Case Connection

DRAIN

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

8.5m Ω @ 60A, 10V

Input Capacitance (Ciss) (Max) @ Vds

3695pF @ 30V

Gate Charge (Qg) (Max) @ Vgs

72nC @ 10V

Drain to Source Voltage (Vdss)

60V

Vgs (Max)

±20V

Drain Current-Max (Abs) (ID)

60A

Drain-source On Resistance-Max

0.0105Ohm

DS Breakdown Voltage-Min

60V

Avalanche Energy Rating (Eas)

115 mJ

REACH SVHC

not_compliant

RoHS Status

ROHS3 Compliant
