Factory Lead Time

22 Weeks

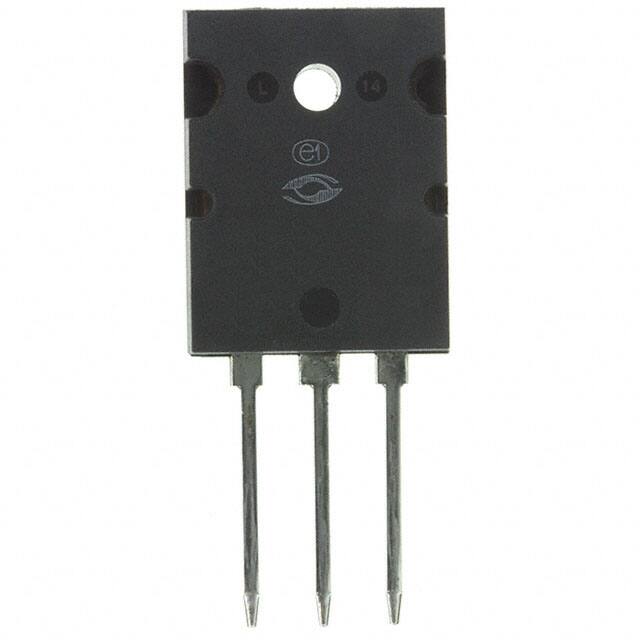

Package / Case

TO-264-3, TO-264AA

Mounting Type

Through Hole

Mount

Through Hole

Number of Pins

3

Transistor Element Material

SILICON

Power Dissipation (Max)

1135W Tc

Turn Off Delay Time

155 ns

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

5V @ 2.5mA

Number of Elements

1

Drive Voltage (Max Rds On, Min Rds On)

10V

Current - Continuous Drain (Id) @ 25℃

84A Tc

Operating Temperature

-55°C~150°C TJ

Packaging

Tube

Published

1997

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

Terminal Finish

PURE MATTE TIN

Additional Feature

FAST SWITCHING, AVALANCHE RATED

Voltage - Rated DC

500V

Terminal Position

SINGLE

Current Rating

84A

JESD-30 Code

R-PSFM-T3

Configuration

SINGLE WITH BUILT-IN DIODE

Operating Mode

ENHANCEMENT MODE

Turn On Delay Time

60 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

65m Ω @ 42A, 10V

Input Capacitance (Ciss) (Max) @ Vds

13500pF @ 25V

Gate Charge (Qg) (Max) @ Vgs

340nC @ 10V

Rise Time

70ns

Vgs (Max)

±30V

Fall Time (Typ)

50 ns

Continuous Drain Current (ID)

84A

Gate to Source Voltage (Vgs)

30V

Drain-source On Resistance-Max

0.065Ohm

Pulsed Drain Current-Max (IDM)

270A

Radiation Hardening

No

RoHS Status

RoHS Compliant

Lead Free

Lead Free
