Mount

Through Hole

Mounting Type

Through Hole

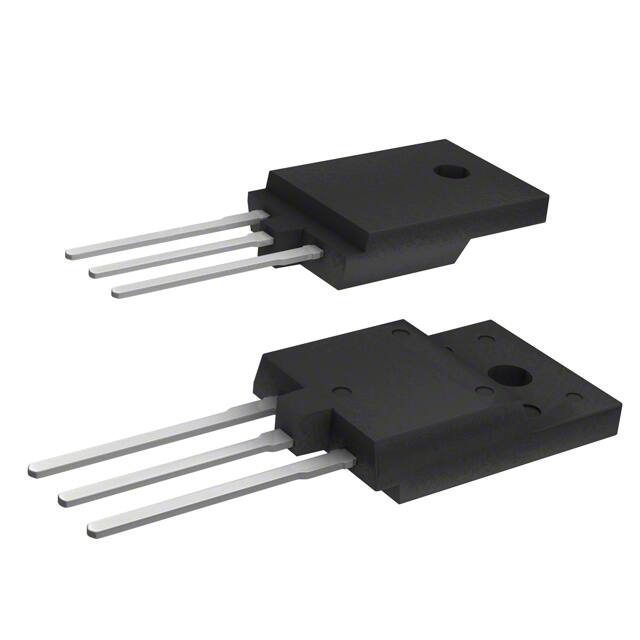

Package / Case

TO-3P-3 Full Pack

Number of Pins

3

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

15A Tc

Drive Voltage (Max Rds On, Min Rds On)

10V

Number of Elements

1

Power Dissipation (Max)

110W Tc

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

4.15V @ 1mA

Operating Temperature

150°C TJ

Packaging

Tube

Published

2011

Part Status

Last Time Buy

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

Terminal Position

SINGLE

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Configuration

SINGLE WITH BUILT-IN DIODE

Operating Mode

ENHANCEMENT MODE

Case Connection

ISOLATED

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

300m Ω @ 7.5A, 10V

Input Capacitance (Ciss) (Max) @ Vds

1700pF @ 25V

Gate Charge (Qg) (Max) @ Vgs

50nC @ 10V

Drain to Source Voltage (Vdss)

600V

Vgs (Max)

±30V

Continuous Drain Current (ID)

15A

Pulsed Drain Current-Max (IDM)

60A

DS Breakdown Voltage-Min

600V

Avalanche Energy Rating (Eas)

15 mJ

REACH SVHC

not_compliant

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
