Mount

Surface Mount

Mounting Type

Surface Mount

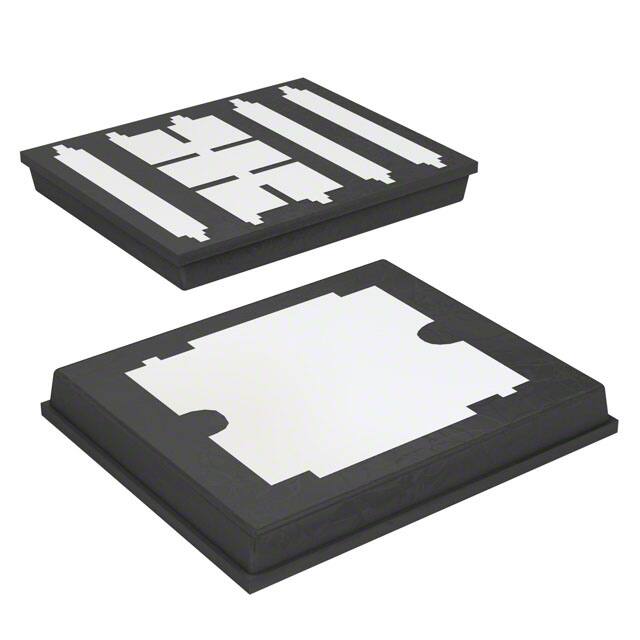

Package / Case

PolarPak®

Number of Pins

10

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

38A Ta

Drive Voltage (Max Rds On, Min Rds On)

4.5V 10V

Number of Elements

1

Power Dissipation (Max)

5.2W Ta

Turn Off Delay Time

43.5 ns

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

2.5V @ 250μA

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

STripFET™

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

4

Termination

SMD/SMT

ECCN Code

EAR99

Resistance

2.15mOhm

Additional Feature

ULTRA-LOW RESISTANCE

Terminal Position

DUAL

Terminal Form

NO LEAD

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

STK8

JESD-30 Code

R-XDSO-N4

Qualification Status

Not Qualified

Configuration

SINGLE WITH BUILT-IN DIODE

Operating Mode

ENHANCEMENT MODE

Power Dissipation

5.2W

Case Connection

SOURCE

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

2.15m Ω @ 19A, 10V

Input Capacitance (Ciss) (Max) @ Vds

6060pF @ 25V

Gate Charge (Qg) (Max) @ Vgs

33nC @ 4.5V

Rise Time

60ns

Vgs (Max)

±16V

Fall Time (Typ)

13 ns

Continuous Drain Current (ID)

38A

Threshold Voltage

2.5V

Gate to Source Voltage (Vgs)

16V

Drain to Source Breakdown Voltage

25V

Pulsed Drain Current-Max (IDM)

152A

Dual Supply Voltage

25V

Avalanche Energy Rating (Eas)

500 mJ

Nominal Vgs

2.5 V

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
