Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

20 Weeks

Mounting Type

Surface Mount

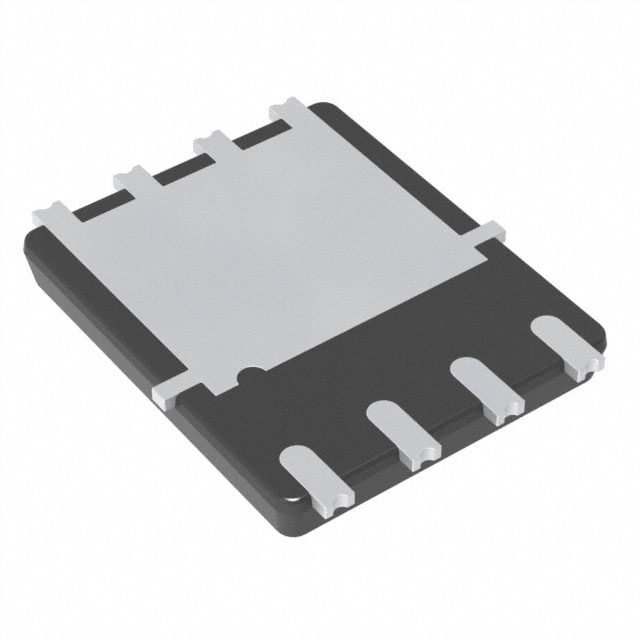

Package / Case

8-PowerWDFN

Surface Mount

YES

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

120A Tc

Drive Voltage (Max Rds On, Min Rds On)

6.5V 10V

Number of Elements

1

Power Dissipation (Max)

130W Tc

Operating Temperature

-55°C~175°C TJ

Packaging

Tape & Reel (TR)

Series

STripFET™ F6

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

Terminal Position

DUAL

Terminal Form

FLAT

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

STLD125

Reference Standard

AEC-Q101

JESD-30 Code

R-PDSO-F5

Configuration

SINGLE WITH BUILT-IN DIODE

Operating Mode

ENHANCEMENT MODE

Case Connection

DRAIN

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

3m Ω @ 75A, 10V

Vgs(th) (Max) @ Id

4V @ 1mA

Input Capacitance (Ciss) (Max) @ Vds

5600pF @ 10V

Gate Charge (Qg) (Max) @ Vgs

91nC @ 10V

Drain to Source Voltage (Vdss)

40V

Vgs (Max)

±20V

Drain Current-Max (Abs) (ID)

101A

Drain-source On Resistance-Max

0.004Ohm

Pulsed Drain Current-Max (IDM)

480A

DS Breakdown Voltage-Min

40V

Avalanche Energy Rating (Eas)

150 mJ

RoHS Status

ROHS3 Compliant
