Factory Lead Time

42 Weeks

Mount

Through Hole

Mounting Type

Through Hole

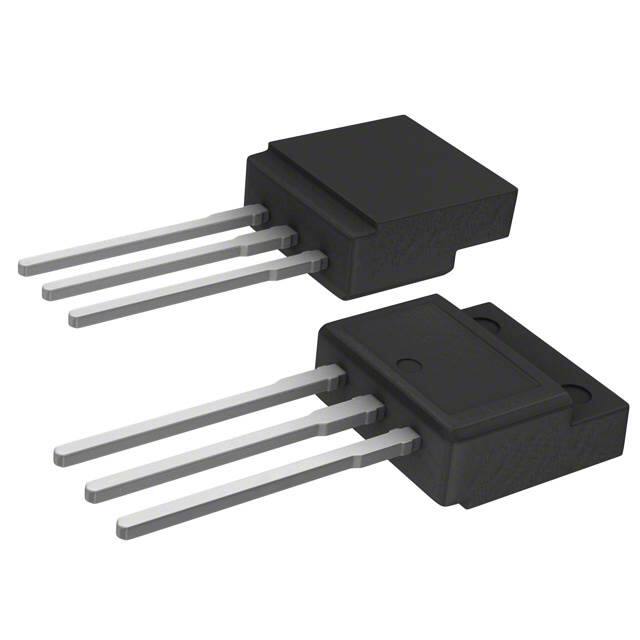

Package / Case

TO-262-3 Full Pack, I2Pak

Number of Pins

3

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

4A Tc

Drive Voltage (Max Rds On, Min Rds On)

10V

Number of Elements

1

Power Dissipation (Max)

20W Tc

Turn Off Delay Time

21 ns

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

4.5V @ 50μA

Operating Temperature

-55°C~150°C TJ

Packaging

Tube

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

Terminal Position

SINGLE

Base Part Number

STFILE

Configuration

SINGLE WITH BUILT-IN DIODE

Operating Mode

ENHANCEMENT MODE

Case Connection

ISOLATED

Turn On Delay Time

8 ns

FET Type

N-Channel

Rds On (Max) @ Id, Vgs

2.6 Ω @ 2.2A, 10V

Input Capacitance (Ciss) (Max) @ Vds

340pF @ 100V

Gate Charge (Qg) (Max) @ Vgs

12nC @ 10V

Rise Time

7ns

Drain to Source Voltage (Vdss)

525V

Vgs (Max)

±30V

Fall Time (Typ)

14 ns

Continuous Drain Current (ID)

4A

JEDEC-95 Code

TO-281

Gate to Source Voltage (Vgs)

30V

Drain Current-Max (Abs) (ID)

4A

DS Breakdown Voltage-Min

525V

Avalanche Energy Rating (Eas)

110 mJ

Radiation Hardening

No

RoHS Status

ROHS3 Compliant
