Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Factory Lead Time

2 Weeks

Mounting Type

Through Hole

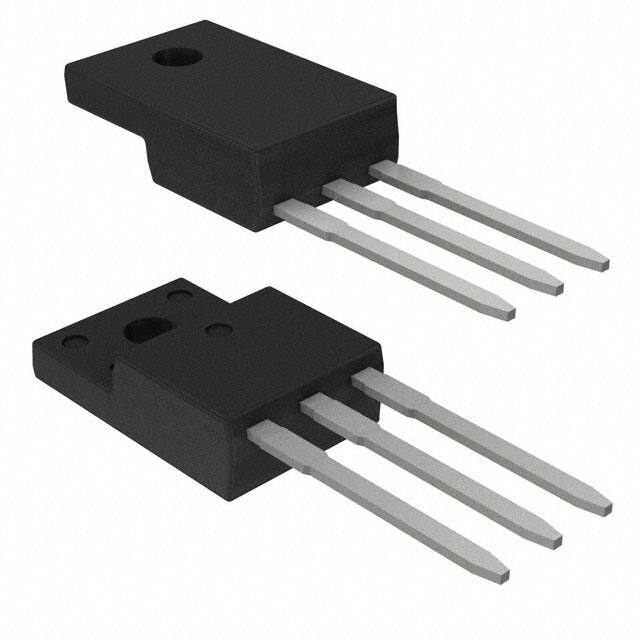

Package / Case

TO-220-3 Full Pack

Surface Mount

NO

Number of Pins

3

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

3.5A Tc

Drive Voltage (Max Rds On, Min Rds On)

10V

Number of Elements

1

Power Dissipation (Max)

2W Ta 35W Tc

Turn Off Delay Time

117 ns

Operating Temperature

-55°C~150°C TJ

Packaging

Tube

Published

2012

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Terminal Finish

Tin (Sn)

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Reach Compliance Code

not_compliant

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Pin Count

3

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Case Connection

ISOLATED

Turn On Delay Time

14 ns

FET Type

N-Channel

Rds On (Max) @ Id, Vgs

3.6 Ω @ 2.5A, 10V

Input Capacitance (Ciss) (Max) @ Vds

650pF @ 30V

Gate Charge (Qg) (Max) @ Vgs

33nC @ 10V

Rise Time

37ns

Drain to Source Voltage (Vdss)

900V

Vgs (Max)

±30V

Fall Time (Typ)

39 ns

Continuous Drain Current (ID)

3.5A

JEDEC-95 Code

TO-220AB

Gate to Source Voltage (Vgs)

30V

Pulsed Drain Current-Max (IDM)

10A

DS Breakdown Voltage-Min

900V

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
