Lifecycle Status

ACTIVE (Last Updated: 8 months ago)

Factory Lead Time

22 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

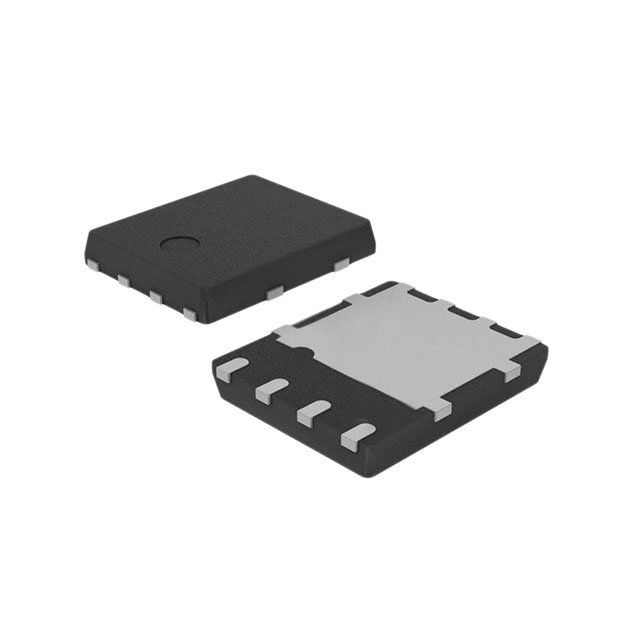

Package / Case

8-PowerVDFN

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

130A Tc

Drive Voltage (Max Rds On, Min Rds On)

10V

Number of Elements

1

Power Dissipation (Max)

4.8W Ta 125W Tc

Operating Temperature

-55°C~175°C TJ

Packaging

Cut Tape (CT)

Series

STripFET™ F7

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

ECCN Code

EAR99

Terminal Position

DUAL

Terminal Form

FLAT

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

STL130

JESD-30 Code

R-PDSO-F5

Configuration

SINGLE WITH BUILT-IN DIODE

Operating Mode

ENHANCEMENT MODE

Case Connection

DRAIN

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

3.5m Ω @ 13A, 10V

Vgs(th) (Max) @ Id

4V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

2600pF @ 25V

Gate Charge (Qg) (Max) @ Vgs

42nC @ 10V

Drain to Source Voltage (Vdss)

60V

Vgs (Max)

±20V

Continuous Drain Current (ID)

130A

Drain-source On Resistance-Max

0.0035Ohm

Pulsed Drain Current-Max (IDM)

520A

DS Breakdown Voltage-Min

60V

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
