Mount

Surface Mount

Mounting Type

Surface Mount

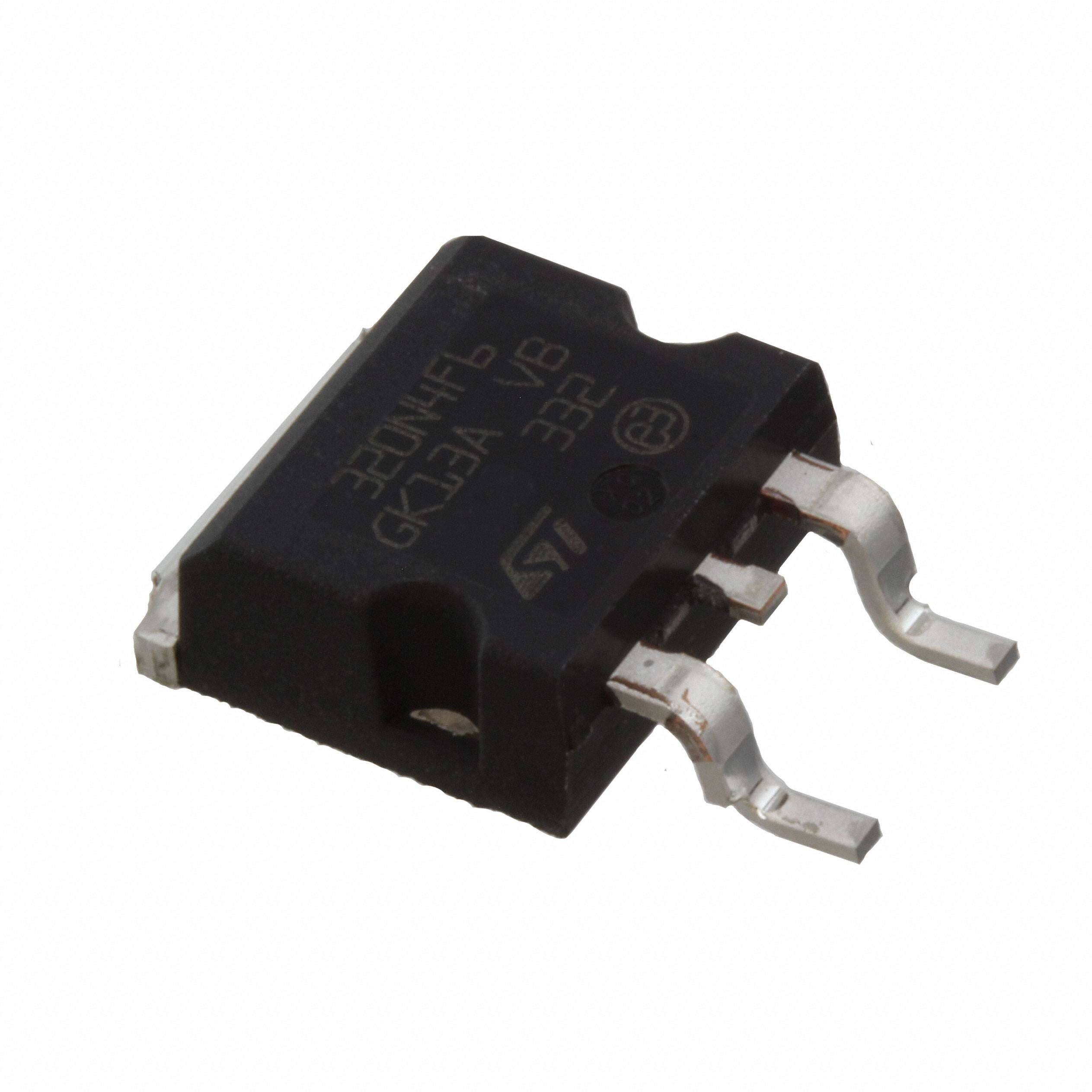

Package / Case

TO-263-3, D2Pak (2 Leads + Tab) Variant

Number of Pins

3

Current - Continuous Drain (Id) @ 25℃

200A Tc

Drive Voltage (Max Rds On, Min Rds On)

10V

Power Dissipation (Max)

300W Tc

Turn Off Delay Time

190 ns

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

4V @ 250μA

Operating Temperature

-55°C~175°C TJ

Packaging

Cut Tape (CT)

Series

Automotive, AEC-Q101, DeepGATE™, STripFET™ VI

Part Status

NRND (Last Updated: 8 months ago)

Moisture Sensitivity Level (MSL)

1 (Unlimited)

ECCN Code

EAR99

Base Part Number

STH320

Element Configuration

Single

Turn On Delay Time

28 ns

FET Type

N-Channel

Rds On (Max) @ Id, Vgs

1.3m Ω @ 80A, 10V

Input Capacitance (Ciss) (Max) @ Vds

13800pF @ 15V

Gate Charge (Qg) (Max) @ Vgs

240nC @ 10V

Rise Time

98ns

Vgs (Max)

±20V

Fall Time (Typ)

95 ns

Continuous Drain Current (ID)

200A

Gate to Source Voltage (Vgs)

20V

Drain to Source Breakdown Voltage

40V

Height

4.8mm

Length

15.8mm

Width

10.4mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant
