Lifecycle Status

ACTIVE (Last Updated: 1 week ago)

Factory Lead Time

4 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

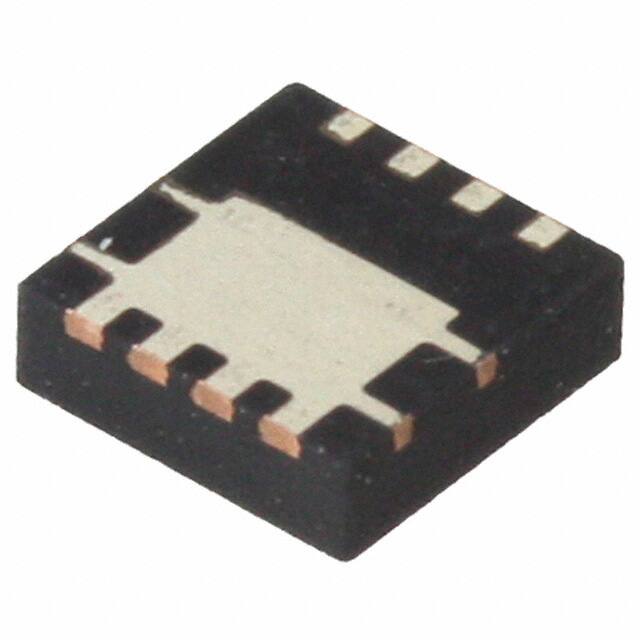

Package / Case

8-PowerWDFN

Number of Pins

8

Weight

200mg

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

4A Ta 16A Tc

Drive Voltage (Max Rds On, Min Rds On)

6V 10V

Number of Elements

1

Power Dissipation (Max)

2.5W Ta 31W Tc

Turn Off Delay Time

10.2 ns

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

PowerTrench®

JESD-609 Code

e4

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

ECCN Code

EAR99

Terminal Finish

Nickel/Palladium/Gold (Ni/Pd/Au)

Additional Feature

ULTRA-LOW RESISTANCE

Terminal Position

DUAL

Terminal Form

FLAT

JESD-30 Code

R-PDSO-F5

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Power Dissipation

31W

Case Connection

DRAIN

Turn On Delay Time

5.9 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

56m Ω @ 4A, 10V

Vgs(th) (Max) @ Id

4V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

402pF @ 50V

Gate Charge (Qg) (Max) @ Vgs

7.3nC @ 10V

Rise Time

1.6ns

Vgs (Max)

±20V

Fall Time (Typ)

2.2 ns

Continuous Drain Current (ID)

16A

Threshold Voltage

2.9V

JEDEC-95 Code

MO-240BA

Gate to Source Voltage (Vgs)

20V

Drain Current-Max (Abs) (ID)

4A

Drain-source On Resistance-Max

0.056Ohm

Drain to Source Breakdown Voltage

100V

Pulsed Drain Current-Max (IDM)

30A

Avalanche Energy Rating (Eas)

37 mJ

Nominal Vgs

2.9 V

Height

750μm

Length

3.3mm

Width

3.3mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant
