Factory Lead Time

8 Weeks

Contact Plating

Tin

Mount

Surface Mount

Mounting Type

Surface Mount

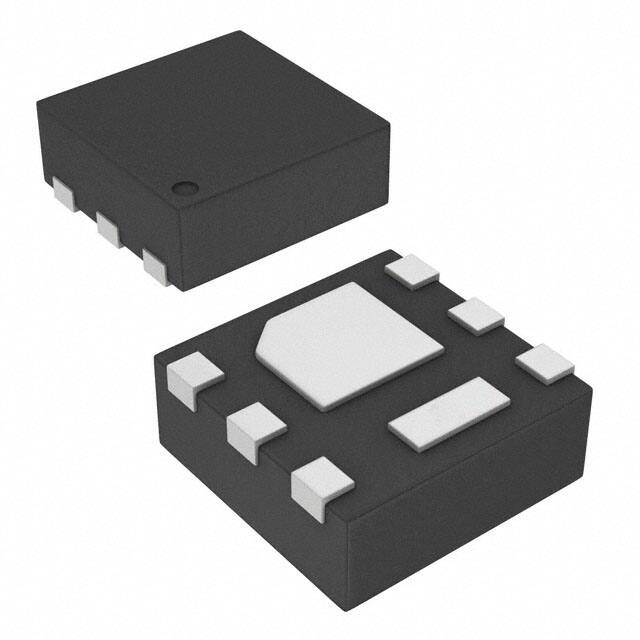

Package / Case

6-VDFN Exposed Pad

Number of Pins

6

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

22A Ta

Drive Voltage (Max Rds On, Min Rds On)

2.5V 4.5V

Number of Elements

1

Power Dissipation (Max)

2.7W Ta

Turn Off Delay Time

11 ns

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

1.1V @ 250μA

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

NexFET™

JESD-609 Code

e4

Pbfree Code

yes

Part Status

ACTIVE (Last Updated: 2 days ago)

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

ECCN Code

EAR99

Terminal Finish

Nickel/Palladium/Gold (Ni/Pd/Au)

Additional Feature

AVALANCHE RATED

Terminal Position

DUAL

Terminal Form

NO LEAD

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

CSD13302

Number of Channels

1

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Power Dissipation

2.7W

Case Connection

DRAIN

Turn On Delay Time

4.5 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

9.3m Ω @ 5A, 4.5V

Input Capacitance (Ciss) (Max) @ Vds

997pF @ 6V

Gate Charge (Qg) (Max) @ Vgs

6.6nC @ 4.5V

Rise Time

28ns

Vgs (Max)

±8V

Fall Time (Typ)

13.6 ns

Continuous Drain Current (ID)

22A

Threshold Voltage

800mV

Gate to Source Voltage (Vgs)

8V

Drain to Source Breakdown Voltage

12V

Avalanche Energy Rating (Eas)

20 mJ

Length

2mm

Width

2mm

Thickness

750μm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
