Factory Lead Time

6 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

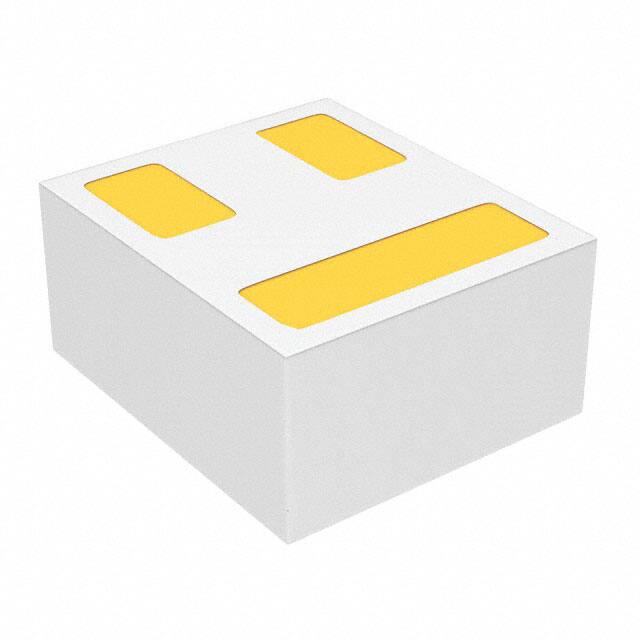

Package / Case

3-SMD, No Lead

Number of Pins

3

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

1.8A Ta

Drive Voltage (Max Rds On, Min Rds On)

1.5V 4.5V

Number of Elements

1

Power Dissipation (Max)

500mW Ta

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

0.95V @ 250μA

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

FemtoFET™

Pbfree Code

yes

Part Status

ACTIVE (Last Updated: 1 day ago)

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

Terminal Position

BOTTOM

Base Part Number

CSD23280

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Case Connection

DRAIN

FET Type

P-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

116m Ω @ 400mA, 4.5V

Input Capacitance (Ciss) (Max) @ Vds

234pF @ 6V

Gate Charge (Qg) (Max) @ Vgs

1.23nC @ 4.5V

Drain to Source Voltage (Vdss)

12V

Vgs (Max)

-6V

Continuous Drain Current (ID)

1.8A

Threshold Voltage

-650mV

Drain-source On Resistance-Max

0.25Ohm

Pulsed Drain Current-Max (IDM)

11.4A

DS Breakdown Voltage-Min

12V

Feedback Cap-Max (Crss)

11.1 pF

Length

690μm

Width

600μm

Thickness

345μm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
