Lifecycle Status

ACTIVE (Last Updated: 1 week ago)

Factory Lead Time

23 Weeks

Contact Plating

Tin

Mount

Surface Mount

Mounting Type

Surface Mount

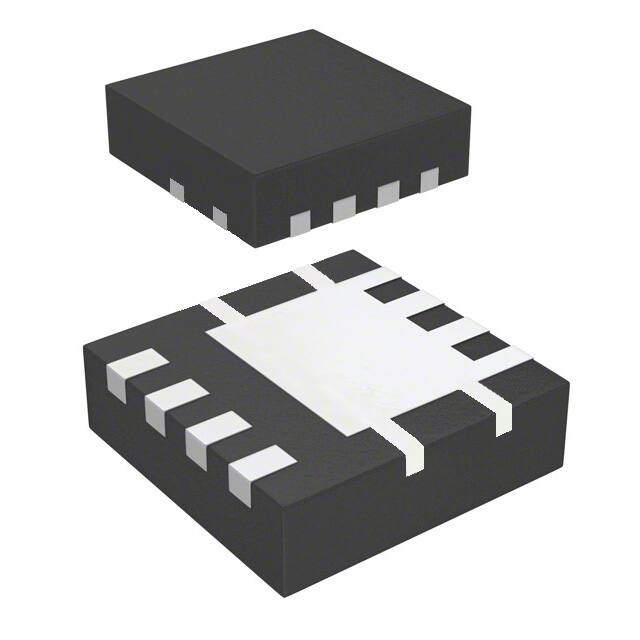

Package / Case

8-PowerWDFN

Number of Pins

8

Weight

165.33333mg

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

16.5A Tc

Drive Voltage (Max Rds On, Min Rds On)

4.5V 10V

Number of Elements

1

Power Dissipation (Max)

2W Ta 41W Tc

Turn Off Delay Time

32 ns

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

PowerTrench®

Published

2006

JESD-609 Code

e4

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

8

ECCN Code

EAR99

Terminal Finish

Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

Terminal Position

DUAL

Terminal Form

FLAT

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Power Dissipation

2W

Case Connection

DRAIN

Turn On Delay Time

13 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

5m Ω @ 16.5A, 10V

Vgs(th) (Max) @ Id

3V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

3380pF @ 10V

Gate Charge (Qg) (Max) @ Vgs

62nC @ 10V

Rise Time

10ns

Vgs (Max)

±20V

Fall Time (Typ)

7 ns

Continuous Drain Current (ID)

16.5A

Gate to Source Voltage (Vgs)

20V

Drain Current-Max (Abs) (ID)

72A

Drain-source On Resistance-Max

0.005Ohm

Drain to Source Breakdown Voltage

20V

Pulsed Drain Current-Max (IDM)

36A

Height

950μm

Length

3mm

Width

3mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
