Lifecycle Status

ACTIVE (Last Updated: 3 days ago)

Factory Lead Time

10 Weeks

Contact Plating

Tin

Mount

Surface Mount

Mounting Type

Surface Mount

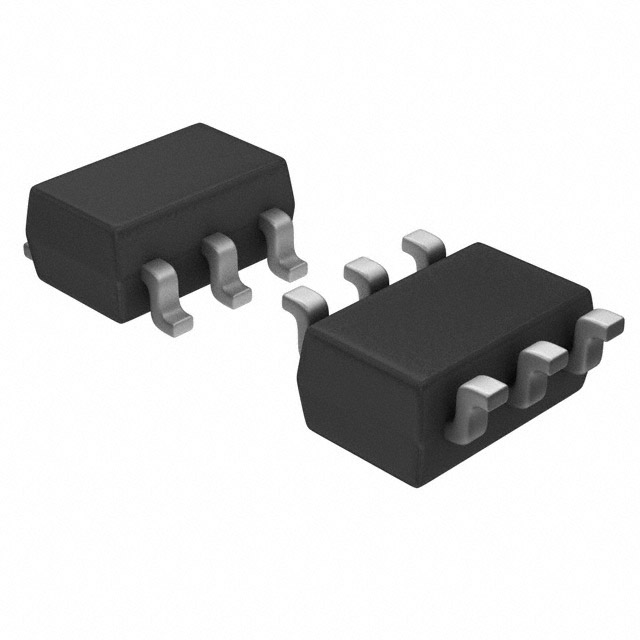

Package / Case

SOT-23-6 Thin, TSOT-23-6

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

6A Ta

Drive Voltage (Max Rds On, Min Rds On)

1.8V 4.5V

Number of Elements

1

Power Dissipation (Max)

1.6W Ta

Turn Off Delay Time

100 ns

Operating Temperature

150°C TJ

Packaging

Tape & Reel (TR)

Published

2012

JESD-609 Code

e6

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

Additional Feature

ESD PROTECTED

Terminal Position

DUAL

Terminal Form

GULL WING

Reach Compliance Code

not_compliant

JESD-30 Code

R-PDSO-G6

Configuration

SINGLE WITH BUILT-IN DIODE

Operating Mode

ENHANCEMENT MODE

Turn On Delay Time

10 ns

FET Type

P-Channel

Rds On (Max) @ Id, Vgs

39m Ω @ 3A, 4.5V

Vgs(th) (Max) @ Id

1.4V @ 1mA

Input Capacitance (Ciss) (Max) @ Vds

860pF @ 10V

Gate Charge (Qg) (Max) @ Vgs

10.5nC @ 4.5V

Rise Time

48ns

Drain to Source Voltage (Vdss)

20V

Vgs (Max)

±12V

Fall Time (Typ)

78 ns

Continuous Drain Current (ID)

6A

Gate to Source Voltage (Vgs)

12V

Drain Current-Max (Abs) (ID)

6A

Drain-source On Resistance-Max

0.039Ohm

Pulsed Drain Current-Max (IDM)

24A

DS Breakdown Voltage-Min

20V

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
