Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

20 Weeks

Mount

Through Hole

Mounting Type

Through Hole

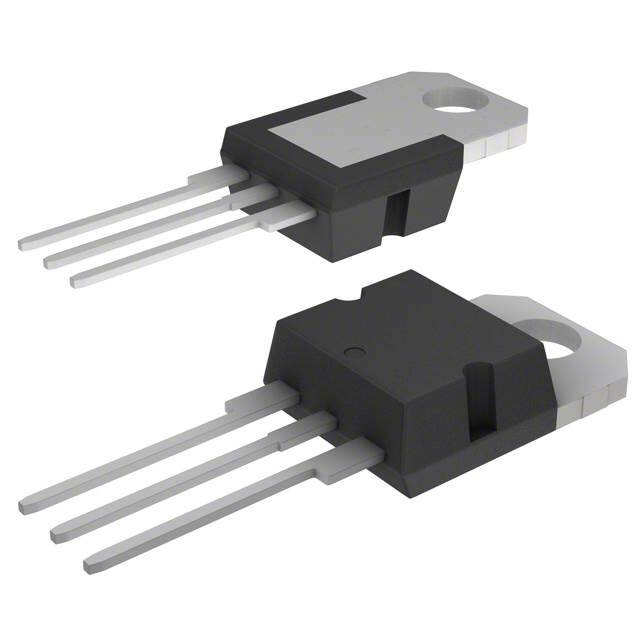

Package / Case

TO-220-3

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

110A Tc

Drive Voltage (Max Rds On, Min Rds On)

10V

Number of Elements

1

Power Dissipation (Max)

200W Tc

Operating Temperature

-55°C~175°C TJ

Packaging

Tube

Series

STripFET™ F6

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Terminal Position

SINGLE

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

STP110

JESD-30 Code

R-PSFM-T3

Configuration

SINGLE WITH BUILT-IN DIODE

Operating Mode

ENHANCEMENT MODE

Case Connection

DRAIN

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

6.5m Ω @ 55A, 10V

Vgs(th) (Max) @ Id

4.5V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

9130pF @ 40V

Gate Charge (Qg) (Max) @ Vgs

150nC @ 10V

Drain to Source Voltage (Vdss)

80V

Vgs (Max)

±20V

Continuous Drain Current (ID)

110A

JEDEC-95 Code

TO-220AB

Drain-source On Resistance-Max

0.0065Ohm

Pulsed Drain Current-Max (IDM)

440A

DS Breakdown Voltage-Min

80V

Avalanche Energy Rating (Eas)

180 mJ

RoHS Status

ROHS3 Compliant
