Mount

Surface Mount

Mounting Type

Surface Mount

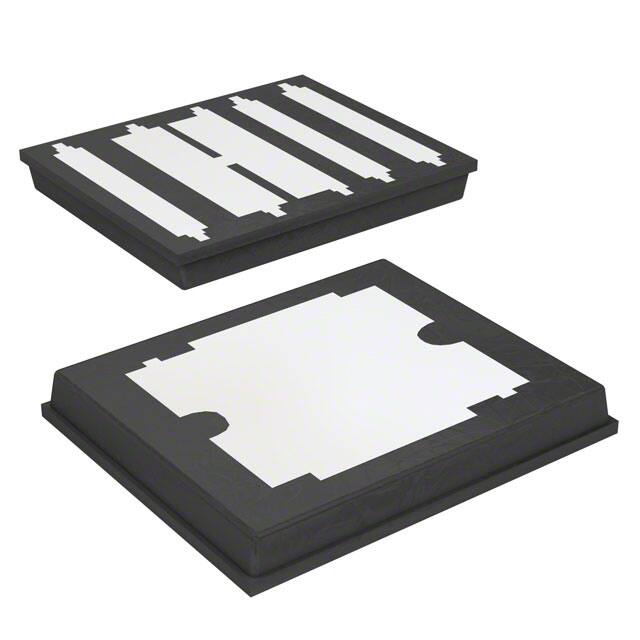

Package / Case

PolarPak®

Number of Pins

10

Transistor Element Material

SILICON

Number of Elements

1

Power Dissipation (Max)

5.2W Ta

Current - Continuous Drain (Id) @ 25℃

21A Ta

Drive Voltage (Max Rds On, Min Rds On)

4.5V 10V

Turn Off Delay Time

17 ns

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

2.5V @ 250μA

Operating Temperature

150°C TJ

Packaging

Tape & Reel (TR)

Series

STripFET™

JESD-609 Code

e3

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

4

ECCN Code

EAR99

Terminal Finish

MATTE TIN

Additional Feature

ULTRA-LOW RESISTANCE

Terminal Position

DUAL

Terminal Form

NO LEAD

Base Part Number

STK8

JESD-30 Code

R-XDSO-N4

Qualification Status

Not Qualified

Configuration

SINGLE WITH BUILT-IN DIODE

Operating Mode

ENHANCEMENT MODE

Power Dissipation

5.2W

Case Connection

SOURCE

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

7.3m Ω @ 10.5A, 10V

Input Capacitance (Ciss) (Max) @ Vds

1425pF @ 25V

Gate Charge (Qg) (Max) @ Vgs

9.5nC @ 4.5V

Rise Time

23ns

Vgs (Max)

±16V

Fall Time (Typ)

4 ns

Continuous Drain Current (ID)

21A

Gate to Source Voltage (Vgs)

16V

Drain-source On Resistance-Max

0.008Ohm

Drain to Source Breakdown Voltage

25V

Pulsed Drain Current-Max (IDM)

84A

Avalanche Energy Rating (Eas)

600 mJ

RoHS Status

ROHS3 Compliant
