Mount

Surface Mount

Mounting Type

Surface Mount

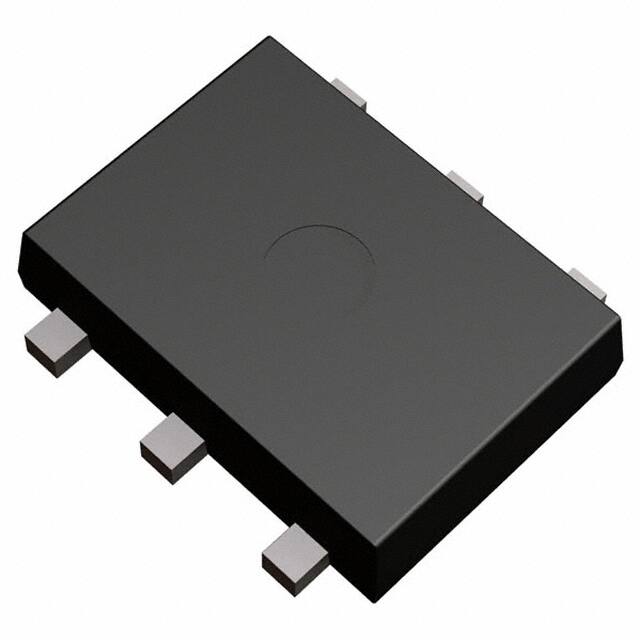

Package / Case

6-SMD, Flat Leads

Transistor Element Material

SILICON

Number of Elements

2

Operating Temperature

150°C TJ

Packaging

Tape & Reel (TR)

Published

2011

JESD-609 Code

e2

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

ECCN Code

EAR99

Terminal Finish

TIN COPPER

Max Power Dissipation

2W

Peak Reflow Temperature (Cel)

260

Time@Peak Reflow Temperature-Max (s)

10

Base Part Number

*K11

Pin Count

6

JESD-30 Code

R-PDSO-F6

Qualification Status

Not Qualified

Configuration

SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

Operating Mode

ENHANCEMENT MODE

Case Connection

DRAIN

Power - Max

2W

FET Type

2 N-Channel (Dual)

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

98m Ω @ 3.5A, 10V

Vgs(th) (Max) @ Id

2.5V @ 1mA

Input Capacitance (Ciss) (Max) @ Vds

85pF @ 10V

Gate Charge (Qg) (Max) @ Vgs

1.9nC @ 5V

Drain to Source Voltage (Vdss)

30V

Continuous Drain Current (ID)

3.5A

Drain-source On Resistance-Max

0.14Ohm

Pulsed Drain Current-Max (IDM)

12A

DS Breakdown Voltage-Min

30V

FET Technology

METAL-OXIDE SEMICONDUCTOR

FET Feature

Logic Level Gate

RoHS Status

ROHS3 Compliant
