Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Factory Lead Time

13 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

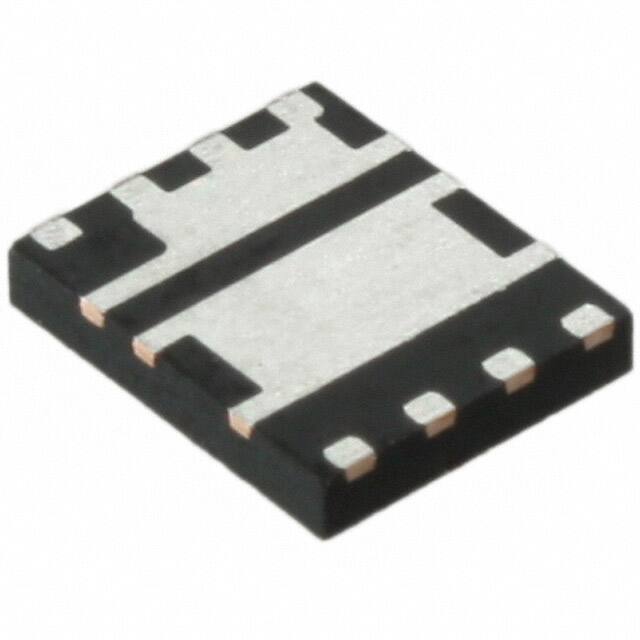

Package / Case

8-PowerTDFN

Number of Pins

8

Weight

171mg

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

15A 26A

Number of Elements

2

Turn Off Delay Time

31 ns

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

PowerTrench®

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

ECCN Code

EAR99

Terminal Finish

Tin (Sn)

Max Power Dissipation

2.5W

Terminal Form

NO LEAD

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Reach Compliance Code

not_compliant

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-PDSO-N6

Number of Channels

2

Operating Mode

ENHANCEMENT MODE

Case Connection

DRAIN SOURCE

Turn On Delay Time

12 ns

Power - Max

2.2W 2.5W

FET Type

2 N-Channel (Dual) Asymmetrical

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

5.6m Ω @ 15A, 10V

Vgs(th) (Max) @ Id

3V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

1770pF @ 13V

Gate Charge (Qg) (Max) @ Vgs

27nC @ 10V

Rise Time

4.2ns

Fall Time (Typ)

3.2 ns

Continuous Drain Current (ID)

26A

Gate to Source Voltage (Vgs)

20V

Drain Current-Max (Abs) (ID)

15A

Drain-source On Resistance-Max

0.0056Ohm

Drain to Source Breakdown Voltage

25V

FET Technology

METAL-OXIDE SEMICONDUCTOR

FET Feature

Logic Level Gate

Feedback Cap-Max (Crss)

90 pF

RoHS Status

ROHS3 Compliant
