Lifecycle Status

ACTIVE (Last Updated: 1 day ago)

Factory Lead Time

23 Weeks

Contact Plating

Gold

Mount

Surface Mount

Mounting Type

Surface Mount

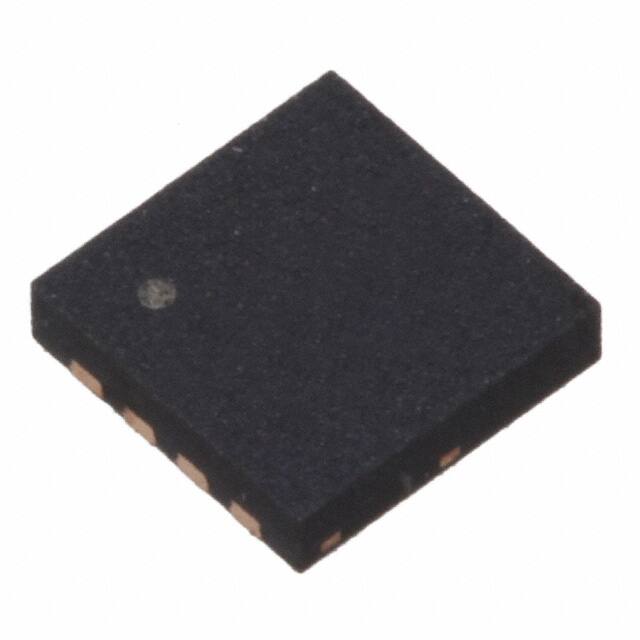

Package / Case

8-PowerWDFN

Number of Pins

8

Weight

180mg

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

9.6A Ta 16.5A Tc

Drive Voltage (Max Rds On, Min Rds On)

4.5V 10V

Number of Elements

1

Power Dissipation (Max)

2.1W Ta 31W Tc

Turn Off Delay Time

20 ns

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

PowerTrench®

Published

2006

JESD-609 Code

e4

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

Termination

SMD/SMT

ECCN Code

EAR99

Resistance

14MOhm

Terminal Position

DUAL

Terminal Form

NO LEAD

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

S-PDSO-N5

Qualification Status

Not Qualified

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Power Dissipation

2.1W

Case Connection

DRAIN

Turn On Delay Time

8 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

14m Ω @ 9.6A, 10V

Vgs(th) (Max) @ Id

3V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

1230pF @ 15V

Gate Charge (Qg) (Max) @ Vgs

26nC @ 10V

Rise Time

4ns

Vgs (Max)

±20V

Fall Time (Typ)

3 ns

Continuous Drain Current (ID)

9.6A

Threshold Voltage

1.7V

Gate to Source Voltage (Vgs)

20V

Drain to Source Breakdown Voltage

30V

Pulsed Drain Current-Max (IDM)

60A

Dual Supply Voltage

30V

Nominal Vgs

1.7 V

Height

950μm

Length

3mm

Width

3mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
