Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Factory Lead Time

12 Weeks

Contact Plating

Tin

Mount

Surface Mount

Mounting Type

Surface Mount

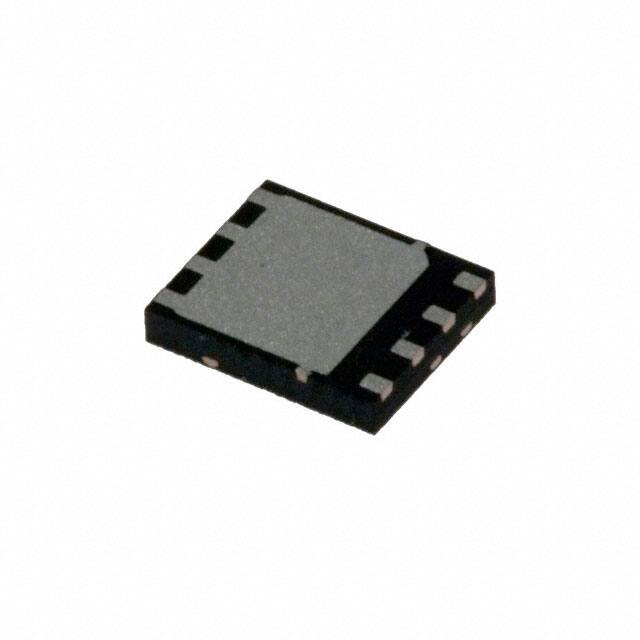

Package / Case

8-PowerTDFN

Number of Pins

8

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

19A Ta 60A Tc

Drive Voltage (Max Rds On, Min Rds On)

4.5V 10V

Number of Elements

1

Power Dissipation (Max)

2.7W Ta

Turn Off Delay Time

8.5 ns

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

NexFET™

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

Termination

SMD/SMT

ECCN Code

EAR99

Additional Feature

AVALANCHE RATED

Terminal Position

DUAL

Peak Reflow Temperature (Cel)

260

Base Part Number

CSD16406

Pin Count

8

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Power Dissipation

2.7W

Case Connection

DRAIN

Turn On Delay Time

7.3 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

5.3m Ω @ 20A, 10V

Vgs(th) (Max) @ Id

2.2V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

1100pF @ 12.5V

Gate Charge (Qg) (Max) @ Vgs

8.1nC @ 4.5V

Rise Time

12.9ns

Vgs (Max)

+16V, -12V

Fall Time (Typ)

4.8 ns

Continuous Drain Current (ID)

60A

Threshold Voltage

1.7V

Gate to Source Voltage (Vgs)

16V

Drain-source On Resistance-Max

0.0074Ohm

Drain to Source Breakdown Voltage

25V

Dual Supply Voltage

25V

Nominal Vgs

1.7 V

Length

3.3mm

Width

3.3mm

Thickness

1mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Contains Lead
