Factory Lead Time

6 Weeks

Contact Plating

Tin

Mount

Surface Mount

Mounting Type

Surface Mount

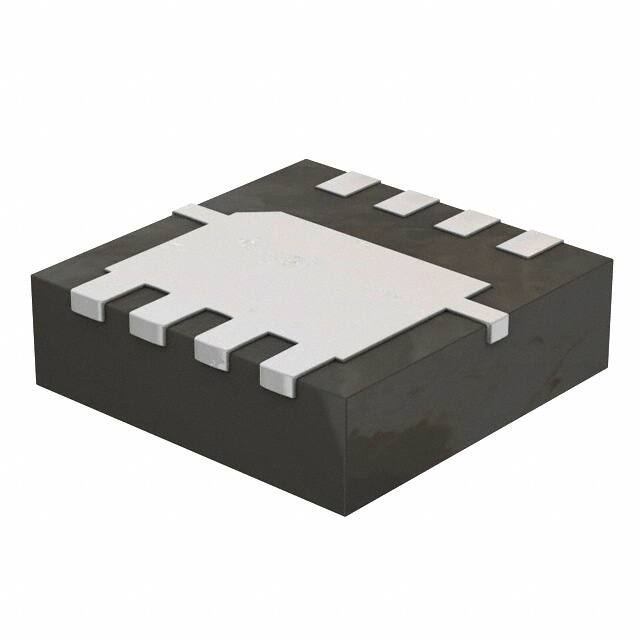

Package / Case

8-PowerTDFN

Number of Pins

8

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

21A Ta 60A Tc

Drive Voltage (Max Rds On, Min Rds On)

3V 8V

Number of Elements

1

Power Dissipation (Max)

3W Ta

Turn Off Delay Time

13 ns

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

1.4V @ 250μA

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

NexFET™

JESD-609 Code

e3

Pbfree Code

yes

Part Status

ACTIVE (Last Updated: 2 days ago)

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

Termination

SMD/SMT

ECCN Code

EAR99

Additional Feature

AVALANCHE RATED

Terminal Position

DUAL

Peak Reflow Temperature (Cel)

260

Base Part Number

CSD16323

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Power Dissipation

3W

Case Connection

DRAIN

Turn On Delay Time

5.3 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

4.5m Ω @ 24A, 8V

Input Capacitance (Ciss) (Max) @ Vds

1300pF @ 12.5V

Gate Charge (Qg) (Max) @ Vgs

8.4nC @ 4.5V

Rise Time

15ns

Vgs (Max)

+10V, -8V

Fall Time (Typ)

6.3 ns

Continuous Drain Current (ID)

60A

Threshold Voltage

1.1V

Gate to Source Voltage (Vgs)

10V

Drain-source On Resistance-Max

0.0065Ohm

Drain to Source Breakdown Voltage

25V

Dual Supply Voltage

25V

Nominal Vgs

1.1 V

Feedback Cap-Max (Crss)

65 pF

Height

1.1mm

Length

3.3mm

Width

3.3mm

Thickness

1mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Contains Lead
