Factory Lead Time

14 Weeks

Contact Plating

Gold

Mount

Surface Mount

Mounting Type

Surface Mount

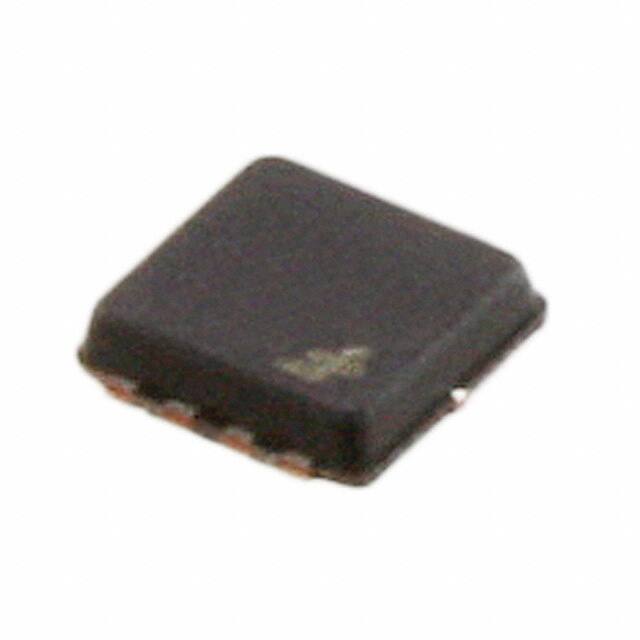

Package / Case

8-PowerWDFN

Number of Pins

8

Weight

180mg

Transistor Element Material

SILICON

Turn Off Delay Time

19 ns

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

4V @ 250μA

Current - Continuous Drain (Id) @ 25℃

3.3A Ta 16A Tc

Drive Voltage (Max Rds On, Min Rds On)

6V 10V

Number of Elements

1

Power Dissipation (Max)

2.3W Ta 35W Tc

Published

2006

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

PowerTrench®

JESD-609 Code

e4

Pbfree Code

yes

Part Status

ACTIVE (Last Updated: 4 days ago)

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

ECCN Code

EAR99

Terminal Position

DUAL

JESD-30 Code

S-PDSO-N5

Number of Channels

1

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Power Dissipation

2.3W

Case Connection

DRAIN

Turn On Delay Time

7.4 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

110m Ω @ 3.3A, 10V

Input Capacitance (Ciss) (Max) @ Vds

880pF @ 50V

Gate Charge (Qg) (Max) @ Vgs

21nC @ 10V

Rise Time

2.8ns

Vgs (Max)

±20V

Fall Time (Typ)

2 ns

Continuous Drain Current (ID)

3.3A

Threshold Voltage

2.5V

JEDEC-95 Code

MO-240BA

Gate to Source Voltage (Vgs)

20V

Drain to Source Breakdown Voltage

100V

Avalanche Energy Rating (Eas)

32 mJ

Max Junction Temperature (Tj)

150°C

Nominal Vgs

2.5 V

Width

3.3mm

Height

800μm

Length

3.3mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
