Lifecycle Status

ACTIVE (Last Updated: 2 days ago)

Factory Lead Time

6 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

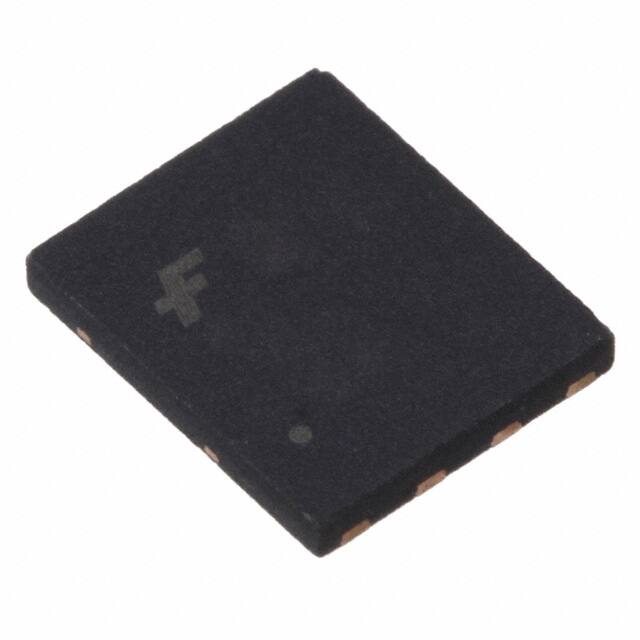

Package / Case

8-PowerWDFN

Number of Pins

8

Weight

210mg

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

8.8A Ta 22A Tc

Drive Voltage (Max Rds On, Min Rds On)

6V 10V

Number of Elements

1

Power Dissipation (Max)

2.5W Ta 78W Tc

Turn Off Delay Time

24 ns

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

UltraFET™

Published

2006

JESD-609 Code

e4

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

8

ECCN Code

EAR99

Terminal Finish

Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

Voltage - Rated DC

80V

Terminal Position

DUAL

Terminal Form

NO LEAD

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Current Rating

22A

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Qualification Status

Not Qualified

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Power Dissipation

2.5W

Turn On Delay Time

11 ns

FET Type

N-Channel

Rds On (Max) @ Id, Vgs

16.5m Ω @ 8.8A, 10V

Vgs(th) (Max) @ Id

4V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

2490pF @ 40V

Gate Charge (Qg) (Max) @ Vgs

40nC @ 10V

Rise Time

13ns

Vgs (Max)

±20V

Fall Time (Typ)

12 ns

Continuous Drain Current (ID)

8.8A

Threshold Voltage

3.2V

Gate to Source Voltage (Vgs)

20V

Drain-source On Resistance-Max

0.029Ohm

Drain to Source Breakdown Voltage

80V

Pulsed Drain Current-Max (IDM)

50A

Height

750μm

Length

5mm

Width

6mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
