Factory Lead Time

6 Weeks

Contact Plating

Tin

Mount

Surface Mount

Mounting Type

Surface Mount

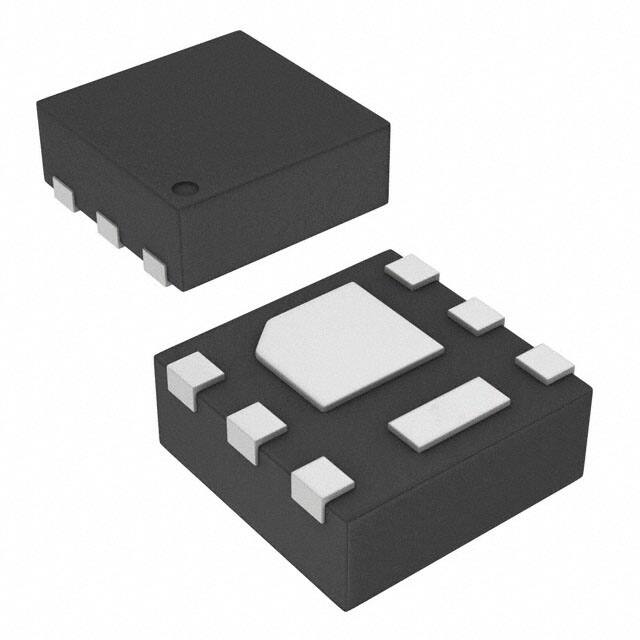

Package / Case

6-SMD, Flat Leads

Number of Pins

6

Transistor Element Material

SILICON

Turn Off Delay Time

4.1 ns

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

1.55V @ 250μA

Current - Continuous Drain (Id) @ 25℃

5A Tc

Drive Voltage (Max Rds On, Min Rds On)

3V 8V

Number of Elements

1

Power Dissipation (Max)

2.3W Ta

Series

NexFET™

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

JESD-609 Code

e4

Pbfree Code

yes

Part Status

ACTIVE (Last Updated: 3 days ago)

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

ECCN Code

EAR99

Terminal Finish

Nickel/Palladium/Gold (Ni/Pd/Au)

Terminal Position

DUAL

Peak Reflow Temperature (Cel)

260

Base Part Number

CSD16301

Number of Channels

1

Element Configuration

Single

Operating Mode

ENHANCEMENT MODE

Power Dissipation

2.3W

Case Connection

DRAIN

Turn On Delay Time

2.7 ns

FET Type

N-Channel

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

24m Ω @ 4A, 8V

Input Capacitance (Ciss) (Max) @ Vds

340pF @ 12.5V

Gate Charge (Qg) (Max) @ Vgs

2.8nC @ 4.5V

Rise Time

4.4ns

Vgs (Max)

+10V, -8V

Fall Time (Typ)

1.7 ns

Continuous Drain Current (ID)

5A

Threshold Voltage

1.2V

Gate to Source Voltage (Vgs)

10V

Drain Current-Max (Abs) (ID)

5A

Drain-source On Resistance-Max

0.034Ohm

Drain to Source Breakdown Voltage

25V

Pulsed Drain Current-Max (IDM)

20A

Max Junction Temperature (Tj)

150°C

Nominal Vgs

1.2 V

Width

2mm

Height

800μm

Length

2mm

Thickness

750μm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
