Factory Lead Time

6 Weeks

Contact Plating

Gold

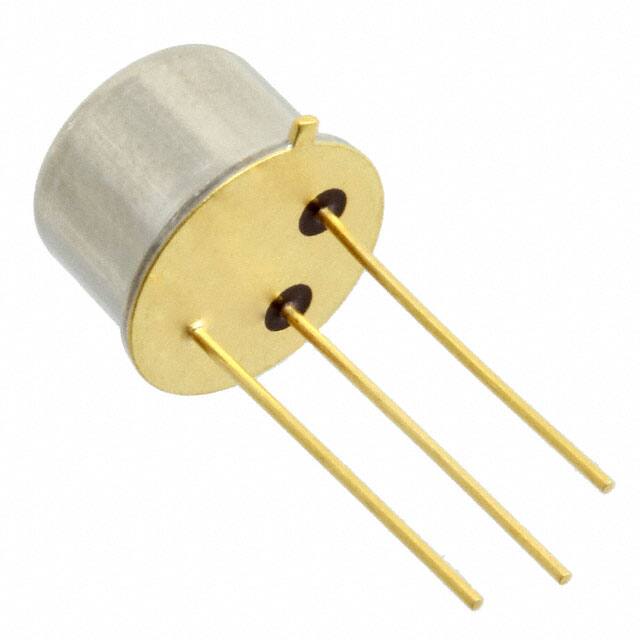

Package / Case

TO-205AD, TO-39-3 Metal Can

Mount

Through Hole

Mounting Type

Through Hole

Number of Pins

3

Supplier Device Package

TO-39

Current - Continuous Drain (Id) @ 25℃

410mA Ta

Drive Voltage (Max Rds On, Min Rds On)

5V 10V

Number of Elements

1

Power Dissipation (Max)

6.25W Tc

Turn Off Delay Time

10 ns

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

2V @ 1mA

Operating Temperature

-55°C~150°C TJ

Packaging

Bulk

Published

2011

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Max Operating Temperature

150°C

Min Operating Temperature

-55°C

Number of Channels

1

Voltage

60V

Element Configuration

Single

Current

11A

Power Dissipation

6.25W

Turn On Delay Time

10 ns

FET Type

N-Channel

Rds On (Max) @ Id, Vgs

3Ohm @ 1A, 10V

Input Capacitance (Ciss) (Max) @ Vds

50pF @ 24V

Drain to Source Voltage (Vdss)

60V

Vgs (Max)

±20V

Continuous Drain Current (ID)

410mA

Gate to Source Voltage (Vgs)

20V

Drain to Source Breakdown Voltage

60V

Input Capacitance

50pF

Drain to Source Resistance

3Ohm

Rds On Max

3 Ω

Radiation Hardening

No

RoHS Status

Non-RoHS Compliant

Lead Free

Lead Free
