Factory Lead Time

14 Weeks

Contact Plating

Gold

Mount

Through Hole

Mounting Type

Through Hole

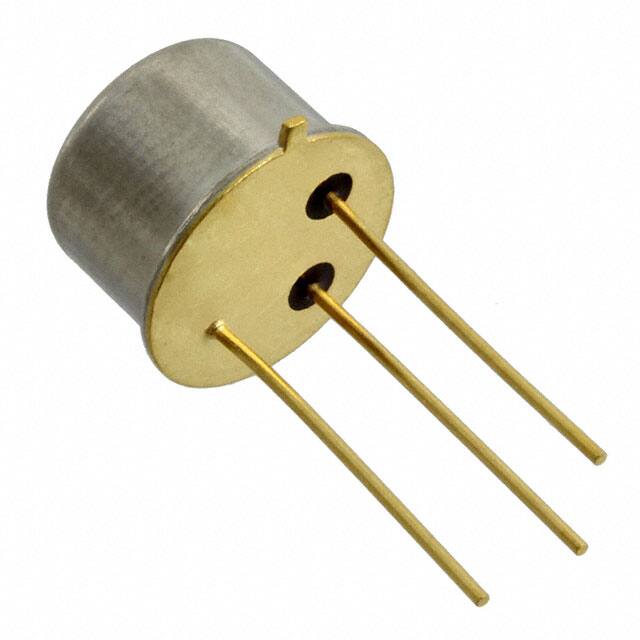

Package / Case

TO-205AD, TO-39-3 Metal Can

Number of Pins

3

Supplier Device Package

TO-39

Current - Continuous Drain (Id) @ 25℃

350mA Tj

Drive Voltage (Max Rds On, Min Rds On)

5V 10V

Power Dissipation (Max)

6.25W Tc

Turn Off Delay Time

10 ns

Voltage - Gate Threshold (Vgs(th)) (Max) @ Id

2V @ 1mA

Operating Temperature

-55°C~150°C TJ

Packaging

Bulk

Published

2010

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Max Operating Temperature

150°C

Min Operating Temperature

-55°C

Number of Channels

1

Element Configuration

Single

Power Dissipation

6.25W

Turn On Delay Time

10 ns

FET Type

N-Channel

Rds On (Max) @ Id, Vgs

4Ohm @ 1A, 10V

Input Capacitance (Ciss) (Max) @ Vds

50pF @ 24V

Drain to Source Voltage (Vdss)

90V

Vgs (Max)

±20V

Continuous Drain Current (ID)

350mA

Threshold Voltage

800mV

Gate to Source Voltage (Vgs)

20V

Drain to Source Breakdown Voltage

90V

Input Capacitance

50pF

Drain to Source Resistance

4Ohm

Rds On Max

4 Ω

Ambient Temperature Range High

150°C

Height

6.604mm

RoHS Status

Non-RoHS Compliant
