Lifecycle Status

ACTIVE (Last Updated: 4 days ago)

Factory Lead Time

6 Weeks

Mounting Type

Surface Mount

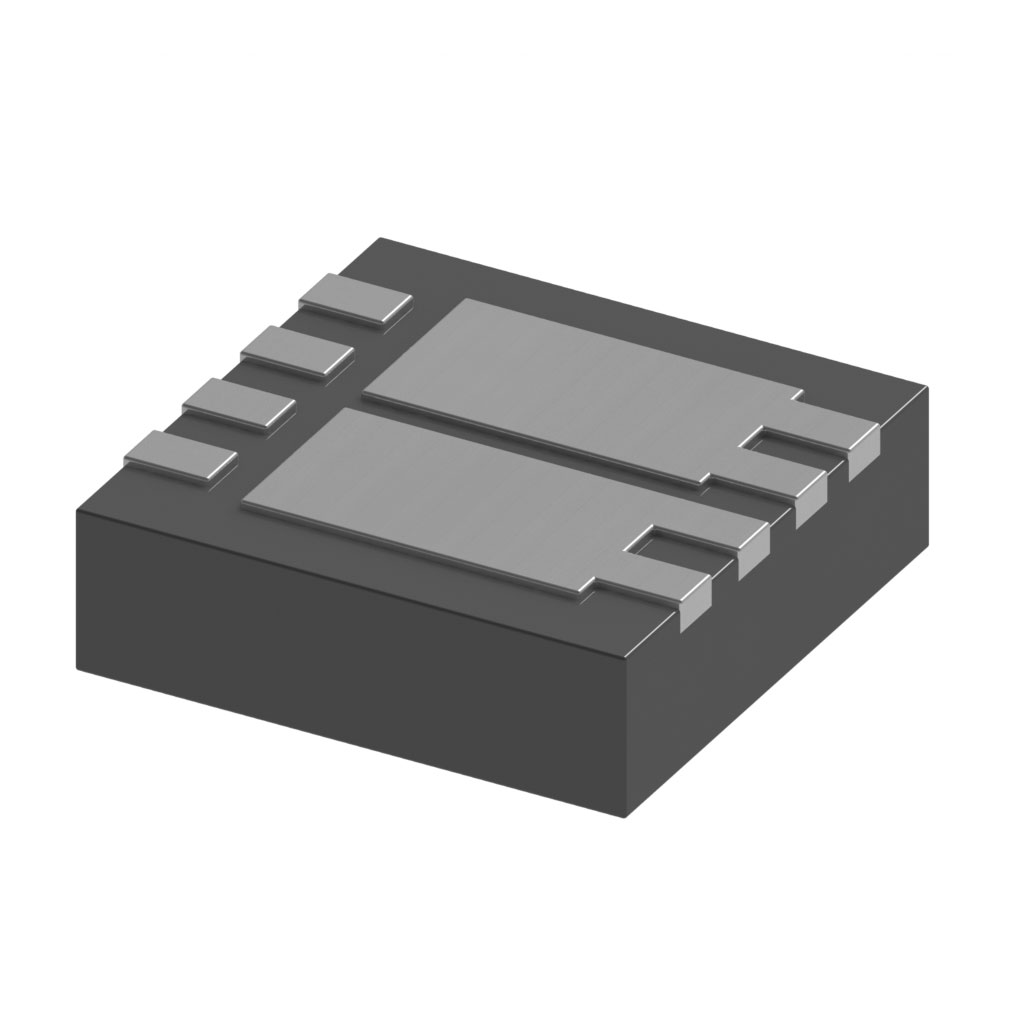

Package / Case

8-PowerVDFN

Surface Mount

YES

Number of Pins

8

Transistor Element Material

SILICON

Current - Continuous Drain (Id) @ 25℃

10A Ta

Number of Elements

2

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

NexFET™

JESD-609 Code

e4

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

ECCN Code

EAR99

Terminal Finish

Nickel/Palladium/Gold (Ni/Pd/Au)

Terminal Form

NO LEAD

Peak Reflow Temperature (Cel)

260

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

CSD87503

Configuration

COMMON SOURCE, 2 ELEMENTS WITH BUILT-IN DIODE

Operating Mode

ENHANCEMENT MODE

Case Connection

DRAIN

Power - Max

15.6W

FET Type

2 N-Channel (Dual) Common Source

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

13.5m Ω @ 6A, 10V

Vgs(th) (Max) @ Id

2.1V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

1020pF @ 15V

Gate Charge (Qg) (Max) @ Vgs

17.4nC @ 4.5V

Drain to Source Voltage (Vdss)

30V

Drain Current-Max (Abs) (ID)

10A

DS Breakdown Voltage-Min

30V

FET Technology

METAL-OXIDE SEMICONDUCTOR

FET Feature

Standard

Feedback Cap-Max (Crss)

194 pF

Length

3.3mm

Width

3.3mm

Thickness

1mm

RoHS Status

ROHS3 Compliant
