Lifecycle Status

ACTIVE (Last Updated: 3 hours ago)

Factory Lead Time

7 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

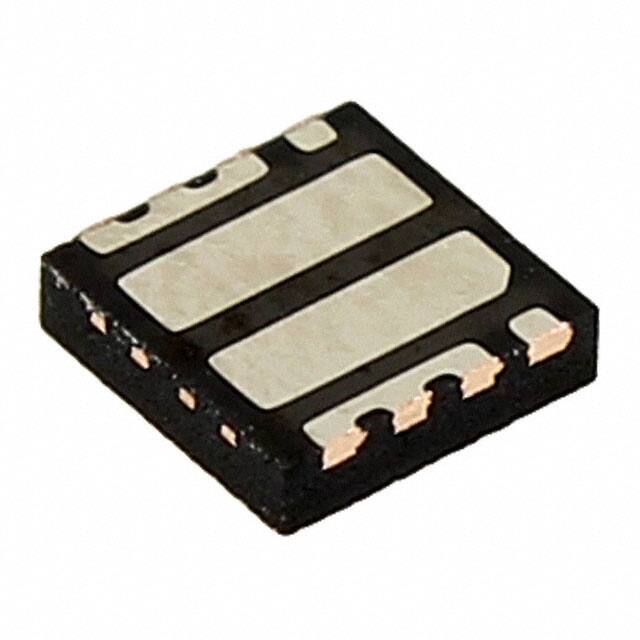

Package / Case

8-PowerWDFN

Number of Pins

8

Weight

196mg

Transistor Element Material

SILICON

Number of Elements

1

Turn Off Delay Time

19 ns

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

PowerTrench®

Published

2007

JESD-609 Code

e4

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

8

ECCN Code

EAR99

Terminal Finish

Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

Additional Feature

AVALANCHE RATED

Max Power Dissipation

800mW

Number of Channels

2

Element Configuration

Dual

Operating Mode

ENHANCEMENT MODE

Power Dissipation

1.9W

Case Connection

DRAIN SOURCE

Turn On Delay Time

7 ns

FET Type

2 N-Channel (Dual)

Transistor Application

SWITCHING

Rds On (Max) @ Id, Vgs

10m Ω @ 12A, 10V

Vgs(th) (Max) @ Id

2.8V @ 250μA

Input Capacitance (Ciss) (Max) @ Vds

1975pF @ 20V

Gate Charge (Qg) (Max) @ Vgs

30nC @ 10V

Rise Time

3ns

Drain to Source Voltage (Vdss)

40V

Fall Time (Typ)

3 ns

Continuous Drain Current (ID)

12A

Threshold Voltage

1.5V

Gate to Source Voltage (Vgs)

12V

Drain to Source Breakdown Voltage

40V

Pulsed Drain Current-Max (IDM)

50A

FET Technology

METAL-OXIDE SEMICONDUCTOR

Max Junction Temperature (Tj)

150°C

FET Feature

Logic Level Gate

Feedback Cap-Max (Crss)

30 pF

Height

800μm

Length

3mm

Width

3mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant
