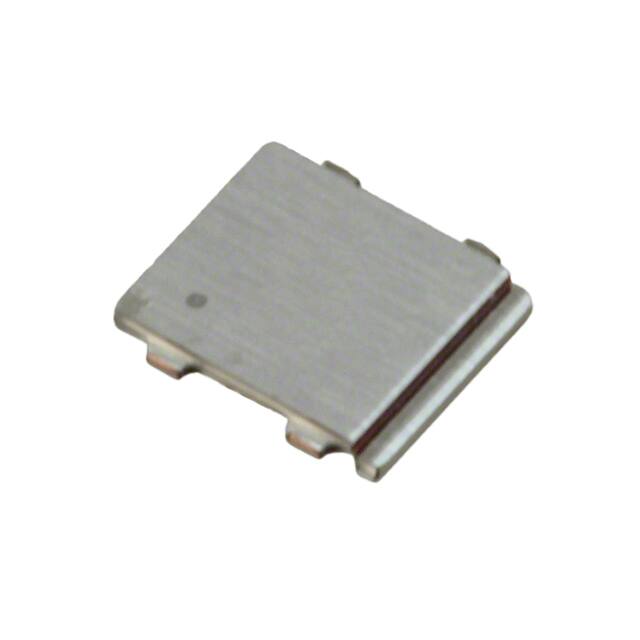

Lifecycle Status

ACTIVE (Last Updated: 3 days ago)

Factory Lead Time

8 Weeks

Contact Plating

Gold

Mount

Surface Mount

Mounting Type

Surface Mount

Package / Case

5-XFLGA

Number of Pins

5

Current - Continuous Drain (Id) @ 25℃

25A

Turn Off Delay Time

20.1 ns

Operating Temperature

-55°C~150°C TJ

Packaging

Tape & Reel (TR)

Series

NexFET™

JESD-609 Code

e4

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

ECCN Code

EAR99

Max Power Dissipation

6W

Terminal Position

BOTTOM

Terminal Form

NO LEAD

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

CSD87588

Analog IC - Other Type

SWITCHING REGULATOR

Element Configuration

Dual

FET Type

2 N-Channel (Half Bridge)

Rds On (Max) @ Id, Vgs

9.6m Ω @ 15A, 10V

Vgs(th) (Max) @ Id

1.9V @ 250μA

Control Technique

PULSE WIDTH MODULATION

Input Capacitance (Ciss) (Max) @ Vds

736pF @ 15V

Gate Charge (Qg) (Max) @ Vgs

4.1nC @ 4.5V

Rise Time

36.7ns

Fall Time (Typ)

6.3 ns

Continuous Drain Current (ID)

15A

Gate to Source Voltage (Vgs)

20V

Drain to Source Breakdown Voltage

30V

FET Feature

Logic Level Gate

Length

5mm

Height Seated (Max)

0.4mm

Width

2.5mm

Thickness

400μm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
